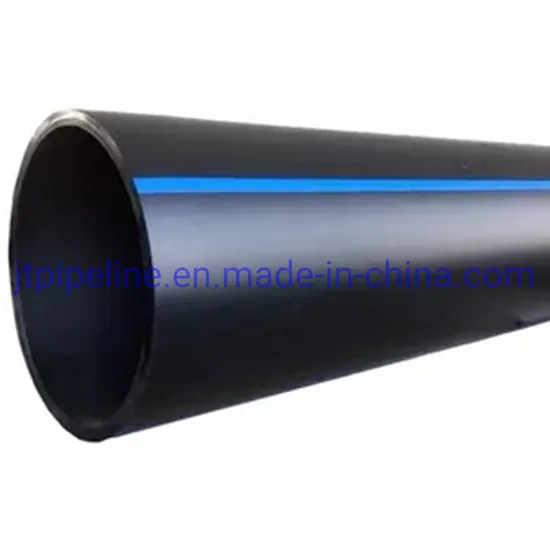

DN20-DN1600 Pn4-Pn20 Polyethylene ISO CE Standard HDPE Pipe for Water Supply

Product Description

Product Description
HDPE PIPE FOR WATER SUPPLY PE100 TUBE DN20-DN1600MM PN4-PN20 SDR41-SDR9 JINGTONG polyethylene(PE)pipes are manufactured in high-density polyethylene(HDPE) raw materials,premium PE100 pipe grades,intended for the conveyance of water for human consumption,including raw water prior to treatment and water for general purpose.

Product	HPDE pipe for water supply
Size(DN)	dn20~dn1600 mm
Pressure(PN)	Pressure(PN)
Legnth	6m,9m,12m or as per customers
Colour	Black with blue stripes
Standard	GB/T13663.2-2018, ISO4427-2:2007,EN12201-2"2003, AS/NZS4130-2018
Certificate	ISO,CE,CNAS,ilac-MRA

Advantages of HDPE Pipe> Good hygiene and environmental performance;> Good flexibility and good seismic performance;> Connection is reliable,many constructionmethods;> Light weight,easy to handle and install;> Resistance to chemical media corrosion;> Long service life,up to 50 years;> Excellent hydraulic performance,Manning's coefficient is 0.009;> Better wear-resistance performance,4 timethan steel pipe Application of HDPE Pipe> Urban area water-supply work system;> Fire-fighting water transmission pipe;> Mine dewatering ;> Industrial materials transmission pipe;> Landscaping water supply network;> Vaccum,pressure and gravity sewer systems;> Slag,slurry transfer pipe;> Aggricultural irrigation pipe;> Compressed air services;> Electricity and telecommunication cable conduits. The uinque properties of PE pipe make it ideal for use when trenchless technoloy is being used to install or rehbilitate pipe systems.Trenchless technology is a common technique uesd to avoid the need for open trenches and reduce the disturbance to the public and the environment.
Size Information JINGTONG HDPE pipes diameters range from DN20 to DN1600,which pressure classes of up to 2.0MPa.PE pressure pipes are designated by their outside diameter or DN. For water and other general pressure applications,the maximum allowable operating pressure(MAOP)with a minimum service coefficient is designated by the pressure rating or PN.The SDR of a PE pipe refres to its"Standard Dimension Ratio"which describes the geometry of the pipe and is the ratios of the outside diameter and the minimum wall thickness. PE100 Pipe Standard Dimensions Detailed Images JINGTONG has a commitment to using only the highest standard of raw materials and the latest manufacturing technologies to produce HDPE pipes.This has established JINGTONG with a reputation as a quality supplier of polyethylene pipes in sizes ranging from 20mm to 1600m in diameter. Production Line
Materials & Checking JINGTONG HDPE pipes are manufactured from PE100 polyethylene resin,with a 50-year minimum required strength of 10MPa.The PE pipes are produced according to GB/T13663.2-2018 which are equal to or equivalent to other standards.
JINGTONG plastic pipes have been exported to many countries with the help of highest quality,integrated solutions and innovations.We work with our materials suppliers to ensure our products are made with the input of continuous research and development to ensure high quality,durability,performance and safety.The reliability and quality of our products is assured as all our manufacturing is audited according to ISO 9001:2015,also operating an environmental management system according to ISO 14001:2015,health and safety management system according to OHSAS 18001:2007. Connection methods JINGTONG HDPE pipe may be joined economically using thermal spigot-socket fusion and butt-fusion or electro-fusion
equipment;altemately diameters up to DN110 are commonly joined using compression fittings which make connection quick and easy.
Packing&Shipping Pipe sizes up to DN90 can be supplied in coil lengths of up to 300 meters in some diameters.Larger diameters length are typically 6m or 12m in stock,other lenghts can be made between purchaser and manufacturer for loading container easily. After Sales ServiceOur Serivice Values * We base the relationships we have on Trust & Integrity.* We believe good Communication is essential to a successful business,with our team,our suppliers and ,most of all,with our customers.* We focus on providing quality in all aspects of our business.* We believe in adopting a caring appr0ach to people and to our environment.* We take pride in everything we do,and the way we do it.* We will always put safety first.PROJECT INGTONG plastic pipe systmes are used popularly in domestic and overseas markets,such as USA,EU,ASEAN,middle east, Africa and Lartin America.China Beijing Daxing Internatioal New Airport,China National Stadium (Birds nest),Ecuador Posolha multipurpose terminal. FAQQ: Are you trading company or factory?A: We are a professional manufacturer and wecome to visit our factory at your time. Q: How long is your delivery time?A: Generally it takes 5-10days if the goods are in stock,which depends on your order quantities and can be negotiated. Q: Can you provide samples?A: Yes,we can.Free samples can be supplied for small quantities,freight need to be collected. Q: Do you supply OEM services? A: Yes, we can offer OEM services according to your request,such as LOGO,package etc. Q: What is your terms of payment?A: L/C at sight, T/T 30% in advanced, balance before shipment or by L/C.
