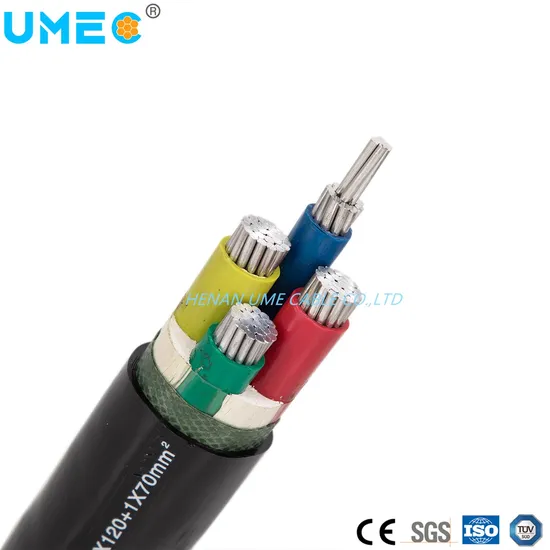

Electrical Cable Wire 0.6/1kv 8/15kv Unarmoured Armoured Swa Sta PVC/XLPE Insulated Sheath Power Cable Cu Al Power Electric Cable

Product Description

Product DescriptionONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.
1. Application
The general type cables are suitable for rated AC voltage 0.6/1kV and below electric distribution lines without flame-retardant or fire-resistant requirements.
The flame-retardant type cables are not easy to burn or their flame propagation is limited only to a certain length. These cables are suitable for high installation density places like power stations, subways, tunnels, high-building, large industrial enterprises, oil fields, mines, etc.
The fire-resistance cables can not only operate in normal conditions but also can operate in a fire during a certain time. These cables are suitable for power stations, subways, high buildings, and other high human density places that have fire-proof and fire-fight requirements.
XLPE Insulated Power Cable is used for power transmission and distribution lines, it has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, and chemical corrosion resistance, and it also has a simple structure, and convenient operation, and is not restricted by laying in the large difference of levels. It can be applied at a high temperature of 90 degrees for a long time.
2. Armoured
Steel tape armored, steel wire armored, Double galvanized steel tape or galvanized steel wire for three core power cable, Double aluminum tape or aluminum wire for the single power cable.
3. Number of cores
Single-core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
4. Rated Voltage
0.6/1kV 6/10kV 8.7/15kV 12/20kV 21/35kV 26/35kV.
5. Standards
PVC Insulated Power Cable meets or exceeds the following standards: IEC 60502, BS, DIN, ASTM, GB12706-2008 standards.
XLPE Insulated Power Cable meets or exceeds the following standards: IEC 60502, BS, DIN, ASTM, GB12706-2008 standards.
6. Type

TYPE		NAME	Main Application
CU core	AL core
YJV/YJY	YJLV/YJLY	XLPE insulated,PVC/PE sheathed power cable	For laying indoor, tunnel, canal, and underground. Unable to bear external mechanical forces, but bear the traction force during laid
YJV22/YJV23	YJLV22/YJLV23	XLPE insulated,steel tape armored, PVC/PE sheathed power cable	For laying indoor ,tunnel,canal and underground. Able to bear external mechanical forces, but unable to bear large pulling force
YJV32/YJV33	YJLV32/YJLV33	XLPE insulated,thin steel wire armored, PVC/PE sheathed power cable	For laying in shaft,water underground will large difference of level. Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43	YJLV42/YJLV43	XLPE insulated,thick steel wire armored, PVC/PE sheathed power cable	For laying in water and seabed. Able to bear positive pressure and pulling force

Product ParametersRated Voltage, No. of Core, and Range of Sectional Area

Rated voltage (kV) Sectional area (mm2) No. of core	1st class	0.6/1	1.8/3	3.6/6	6/10	8.7/15	12/20	18/30	21/35
	2nd class	1/1	3/3	6/6	8.7/10	12/15	18/20	-	26/35
1 Core		1.5-800	25-800	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
2 Core		1.5-185	25-185
3 Core		1.5-400	25-400	25-400	25-400	35-400	50-400	50-400	50-400
4 Core		2.5-400	25-400
5 Core		2.5-400	25-400

2). DC resistance: conductor resistance of the finished cable at 20ºC per kilometer is not more than the following values.

Nominal section area (mm2)	1.5	2.5	4	6	10	16	25	35	50	70	95	120	150	185	240	300	400	500	630	800
Copper core	12.1	7.41	4.61	3.08	1.83	1.15	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.099	0.0754	0.0601	0.047	0.0366	0.0283	0.0221
Aluminum core	18.1	12.1	7.41	4.61	3.08	1.91	1.2	0.868	0.641	0.443	0.32	0.253	0.206	0.164	0.125	0.1	0.778	0.0605	0.0469	0.0367

3). Voltage Test and Partial Discharge Test

	Rated voltage Uo (kV) Item		0.6/1	1.8/3	3.6/6	6/6 6/10	8.7/10 8.7/15	12/20	18/20 18/30	21/35	26/35
	Voltage	Test voltage	3.5	6.5	12.5	21	30.5	42	63	73.5	91
		Test time	5	5	5	5	5	5	5	5	5
	Partial discharge test	Test voltage	-	-	6.2	10.4	15.1	20.8	31.1	36.3	45
		Discharge capacity	-	-	10	10	10	10	10	10	10

single-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
1*4	6.8	87	64	/	/	/	/	/	/
1*6	7.2	110	71	/	/	/	/	/	/
1*10	8.0	165	96	/	/	/	/	/	/
1*16	8.9	220	123	/	/	/	/	/	/
1*25	10.4	345	172	14.3	451	293	17.6	780	622
1*35	11.5	424	212	15.5	564	345	18.6	910	691
1*50	13.0	555	274	17.2	721	424	20.6	1125	828
1*70	14.0	770	354	19.0	951	522	22.0	1373	944
1*95	16.4	1040	474	21.3	1252	657	24.3	1904	1309
1*120	17.8	1290	565	22.9	1515	763	26.8	2241	1489
1*150	20.6	1590	690	24.9	1822	898	28.8	2815	1891
1*185	22.5	1944	854	27.1	2229	1070	31.2	31403	1981
1*240	24.9	2510	1092	30.2	2847	1323	33.3	3890	2366
1*300	27.3	3176	1345	35.2	3867	1956	40.0	5165	3254
1*400	34.1	4160	1680	38.8	4802	2358	42.9	6836	4392
1*500	39.0	5302	2124	43.0	6059	2881	48.5	8100	4922

2-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
2*4	12.2	224	175	15.9	351	302	/	/	/
2*6	13.2	278	204	16.9	415	340	/	/	/
2*10	15.8	397	273	19.5	558	434	/	/	/
2*16	17.9	545	346	21.6	726	527	/	/	/
2*25	16.6	609	361	20.0	775	527	25.8	1643	1331
2*35	18.1	908	474	21.6	1089	655	26.8	1947	1510
2*50	20.4	1253	633	24.4	1460	841	29.0	2438	1814
2*70	23.0	1670	803	26.8	1900	1032	31.8	3389	2515
2*95	24.4	2219	1042	30.2	2493	1316	35.6	4109	2923
2*120	28.7	2728	1242	33.6	3332	1845	37.8	4847	3350
2*150	31.8	3372	1513	37.0	4056	2198	42.1	6332	4461
2*185	35.2	4163	1871	40.6	4927	2635	46.5	7430	5121

3-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
3*4	14.4	299	225	16.8	439	365	/	/	/
3*6	15.5	376	264	17.9	526	414	/	/	/
3*10	18.3	545	359	20.7	722	536	/	/	/
3*16	20.6	757	460	23.0	956	658	/	/	/
3*25	20.2	857	485	22.6	1052	680	28.0	1955	1487
3*35	22.0	1298	647	24.4	1510	859	27.3	2171	1516
3*50	25.3	1794	865	27.9	2050	1121	30.6	2761	1825
3*70	28.5	2426	1125	30.9	2697	1397	34.8	3811	2500
3*95	32.3	3233	1468	36.1	3897	2132	38.3	4734	2956
3*120	35.1	3990	1760	38.9	4710	2479	43.4	6178	3931
3*150	38.8	4949	2161	42.8	5761	2973	47.6	7403	4596
3*185	42.9	6078	2640	47.1	6985	3547	52.1	8804	5341
3*240	48.1	7807	3347	52.3	8821	4361	57.3	10747	6255
3*300	53.0	9676	4100	57.2	10788	5213	61.9	12822	7206

3+1-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
3*4+1*2.5	14.6	328	239	16.8	470	380	/	/	/
3*6+1*4	16.1	428	292	17.9	583	447	/	/	/
3*10+1*6	18.7	614	391	20.7	795	572	/	/	/
3*16+1*10	21.4	876	516	23.0	1082	722	/	/	/
3*25+1*16	21.1	1202	638	24.2	1405	842	26.1	2349	1782
3*35+1*16	23.3	1524	775	25.9	1749	999	29.6	2606	1852
3*50+1*25	27.1	2147	1063	30.5	2406	1322	34.8	3609	2524
3*70+1*35	30.3	2871	1353	33.9	3175	1657	38.2	4606	3077
3*95+1*50	34.8	3868	1793	38.5	4580	2505	42.6	5794	3704
3*120+1*70	37.6	4825	2162	41.8	5592	2929	47.9	7540	4857
3*150+1*70	41.7	5806	2584	45.0	6655	3434	52.1	8850	5605
3*185+1*95	46.2	7214	3187	49.9	8190	4163	57.0	10563	6507
3*240+1*120	51.8	9197	3993	55.5	10286	5082	62.4	12940	7700
3*300+1*150	57.3	11415	4910	61.2	12616	6111	72.8	16296	9744

4-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
4*4	15.2	355	256	17.6	501	402	/	/	/
4*6	16.4	453	305	18.8	612	463	/	/	/
4*10	19.5	670	422	21.9	858	610	/	/	/
4*16	22.1	947	550	24.5	1159	762	/	/	/
4*25	22.7	1322	703	25.1	1540	921	30.3	2316	1801
4*35	24.9	1729	862	27.5	1981	1114	29.6	2615	1741
4*50	28.7	2398	1159	31.3	2687	1448	34.2	3648	2400
4*70	32.3	3221	1487	36.1	3883	2149	38.1	4682	2935
4*95	36.8	4290	1936	40.8	5062	2708	42.5	5917	3818
4*120	39.8	5277	2303	43.8	6110	3137	47.8	7643	4648
4*150	44.4	6567	2850	48.2	7469	3752	52.2	9164	5420
4*185	49.0	8062	3478	53.2	9094	4509	57.1	10905	6288
4*240	54.9	10334	4387	59.1	11488	5541	62.9	13466	7476
4*300	60.7	12811	5377	64.9	14082	6648	69.1	16480	9040

3+2-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
3*4+2*1.5	14.3	324	218	17.5	508	401	/	/	/
3*6+2*4	16.1	440	277	19.3	646	482	/	/	/
3*10+2*6	18.7	635	370	21.9	873	607	/	/	/
3*16+2*10	21.8	926	499	25.0	1203	775	/	/	/
3*25+2*16	23.3	1333	664	26.1	1585	916	30.8	2459	1791
3*35+2*16	24.7	1635	784	27.7	1914	1063	32.7	2710	1855
3*50+2*25	28.3	2255	1063	32.5	2924	1732	36.3	3952	2704
3*70+2*35	32.0	3135	1407	36.2	3883	2155	39.8	4933	3186
3*95+2*50	36.7	4217	1866	41.1	5092	2742	44.0	6223	3821
3*120+2*70	40.7	5417	2329	44.9	6360	3272	50.1	8240	5994
3*150+2*70	43.7	6303	2694	47.9	7314	3705	53.1	9382	5700
3*185+2*95	49.2	8024	3413	53.4	9161	4549	58.4	11327	6678
3*240+2*120	55.0	10314	4315	59.2	11580	5581	64.0	13850	7860
3*300+2*150	60.8	12817	5322	65.0	14212	6717	69.9	16710	9223

4+1-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
4*4+1*2.5	14.8	348	232	18.0	537	421	/	/	/
4*6+1*4	16.4	465	289	19.6	673	496	/	/	/
4*10+1*6	19.4	686	396	22.6	932	641	/	/	/
4*16+1*10	22.4	992	528	25.5	1275	809	/	/	/
4*25+1*16	23.5	1362	638	26.1	1609	885	30.1	2513	1789
4*35+1*16	25.1	1751	777	27.7	2009	1035	31.9	2970	1997
4*50+1*25	29.5	2473	1069	33.5	3104	1700	37.5	4244	2840
4*70+1*35	32.9	3367	1402	37.1	4083	2117	40.9	5322	3357
4*95+1*50	37.3	4512	1829	41.3	5301	2618	46.8	7266	4583
4*120+1*70	41.2	5709	2277	45.2	6578	3146	50.7	8747	5316
4*150+1*70	45.1	6921	2740	49.1	7871	3690	54.8	10264	6084
4*185+1*95	49.8	8592	3382	53.8	9637	4427	60.3	12340	7215
4*240+1*120	56.2	11018	4279	60.2	12193	5454	66.3	15140	8401

5-core XLPE insulation PVC sheath power cable

Nominal Area mm2	Non armored			Tape-armored			Wire-armored
	Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km		Reference diameter mm	Approximate weight kg/km
		Cu	Al		Cu	Al		Cu	Al
5*2.5	13.4	266	/	/	/	/	/	/	/
5*4	14.6	386	260	18.3	570	446	/	/	/
5*6	16.0	505	316	19.7	704	517	/	/	/
5*10	19.1	760	433	23.5	999	684	27.0	1700	1390
5*16	22.6	1090	588	26.0	1357	858	30.0	2316	1820
5*25	27.4	1598	818	31.0	2183	1390	35.0	2848	2073
5*35	30.5	2134	1049	34.5	2764	1664	38.2	3648	2563
5*50	33.0	2848	1382	37.4	3594	2105	41.5	4682	3132
5*70	37.0	3980	1823	41.9	4849	2658	47.8	5917	3747
5*95	43.7	5386	2447	49.0	6834	3848	55.0	7843	4898

TestingHENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:
Raw material inspection and testProduction process testUnqualified product controlRegular test and examinationFinished product inspection CertificationsUME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.Packaging & Shipping
Customer Visit
Company ProfileUME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.
UME CABLE was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with a most competitive price within the market.FAQQ1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW, and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding cables, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free.
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
