Advanced Spiral Homogenizer for Effortless Twin Strip Blending

Product Description

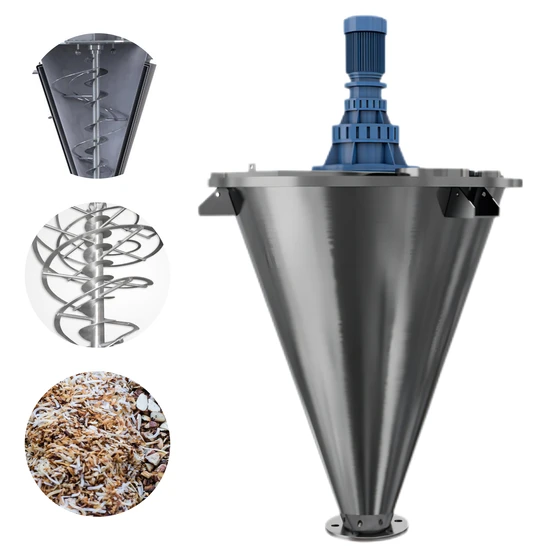

Introducing the groundbreaking Conical Screw Ribbon Mixers - an unparalleled and versatile solution for the intricate tasks of mixing, stirring, and blending powders, granular materials, slurries, or viscous substances. These mixers can be custom-designed with a liquid spraying system and can operate under a variety of conditions, including vacuum, pressurized, heated, or cooled environments, all meticulously tailored to meet user requirements. This exceptional flexibility allows seamless adaptation to diverse process conditions, ensuring your materials are mixed and stirred to absolute perfection.
The exceptional Conical Screw Ribbon Mixers offer powerful and efficient mixing capabilities. During operation, materials near the container wall ascend, while those at the center descend, facilitating a gentle yet thorough amalgamation of flowable materials. This ensures a superior degree of uniform mixing for large quantities within a remarkably short timeframe. The meticulously engineered discharge mechanism guarantees near-complete material evacuation from the hopper, minimizing residue and ensuring unparalleled processing efficiency.
Product Features
1. Cantilever Shaft Structure,keeping the bearings end free from material contact.
2. The minimal gap between the agitator blades and container wall effectively prevents material adhesion .
3. A standardized agitator drive box ensures smooth and stable equipment operation, significantly reducing maintenance costs.
4. Easy-Cleaning : Engineered for rapid and thorough cleaning between batches;
5. Durable Construction : Crafted from robust materials to guarantee long-term reliability;
6. Wide Application : Perfect for diverse industries including pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

Product Display Product StructureApplication
The highly efficient Double Cone Mixer is ideal for applications in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry
