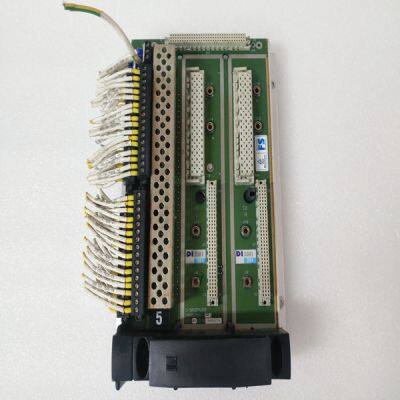

TRICONEX 2301

Product Details

Product Description

Product Description
Brand:TRICONEX
Type:2301
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
The 505E has eight relay outputs available. Two of these relays are dedicated; one for a system shutdown command from the 505E and one for alarm indication. The other six relays can be programmed for a variety of indications, and system functions. For fail-safe operation, the dedicated Shutdown relay is energized during normal system operation, and will de-energize when a shutdown occurs. The dedicated Alarm relay is normally de-energized. This relay will energize upon an alarm condition and stay energized until the alarm condition is cleared. Optionally this relay can be configured through the 505E’s Service mode, to toggle on and off repeatedly when an alarm condition has occurred. With this configuration if a reset command is given and the alarm condition still exists, the relay will stop toggling and stay energized. The relay will start toggling again, upon a new alarm condition. This option can be used to inform the operator when another alarm condition has occurred. Any of the other six relays can be programmed to function as a level switch or a mode or condition indication. When programmed as a level switch the relay will change state when the selected parameter reaches the programmed level (energizes when value is higher the programmed level). The following is a list of the 505E’s relay options: Speed Auxiliary Input Speed Setpoint Aux Setpoint Extr/Adm Input Extr/Adm Demand Extr/Adm Setpoint First Stage Pressure KW Input HP Valve Demand Sync/Load Share Input Level LP Valve Demand Cascade Input HP Valve Limiter Casc Setpoint LP Valve Limiter The present relay state (energized / de-energized) and relay configuration is indicated through both Modbus communication links. Relays not used as level switches can be programmed to indicate control states. Except for the Trip relay, when programmed to indicate a state or event, relay will energize upon the respective state or event occurring.
The following is a list of options for relays if used to indicate a control mode or state: Shutdown Condition Sync Enabled Trip Relay (additional trip relay output) Sync / Load Shr Active Alarm Condition Load Share Control 505E Control Status OK Casc Control Enabled Overspeed Trip Cascade Control Active Overspeed Test Enabled Remote Casc Setpt Enabled Speed PID in Control Remote Casc Setpt Active Remote Speed Setpt Enabled Aux Control Enabled Remote Speed Setpt Active Aux Control Active Underspeed Switch Auxiliary PID in Control Auto Start Sequence Halted Remote Aux Setpt Enabled On-Line PID Dynamics Mode Remote Aux Setpt Active Local Control Mode HP Valve Limiter in Control Frequency Control Armed LP Valve Limiter in Control Frequency Control F3 Key Selected Extr/Adm Control Enabled F4 Key Selected Extr/Adm Control Active Remote Extr/Adm Sept Enabled Extr/Adm PID in Control Remote Extr/Adm Sept Active
