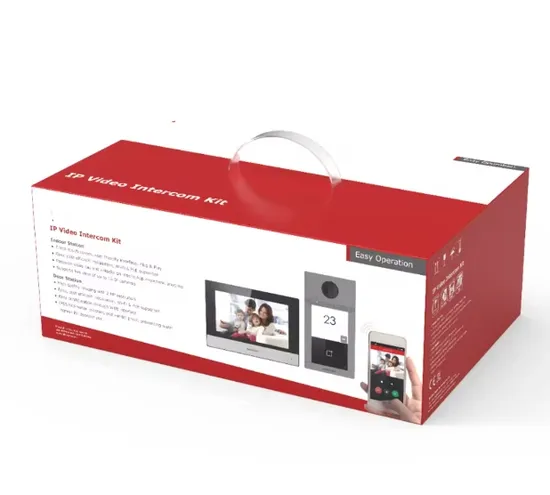

7-Inch IP Video Intercom Kit Ds-Kis604-P Hikvision Villa Door Phone Smart Door Unlock WiFi Video Intercom System

Product Description

7-Inch IP Video Intercom Kit Ds-Kis604-p Hikvision Villa Door Phone Smart Door Unlock WiFi Video Intercom System
Place of Origin Zhejiang, China
Brand Name Hik
Model Number DS-KIS604-P(C)
LCD Screen 7"
Color Grey
Main Processor Embedded Micro Processor
Operation System Embedded LINUX OS
Audio Input All-direction Microphone
Audio Output Built-in Loudspeaker
Bidirectional Talk Support Dual-way Bidirectional talk
Warranty 1 Year
Data Storage Options Memory Card
Application Indoor
Packaging and delivery Packaging Details 290 mm X116.5 mm X 33 mm (11.4" X 4.6" X 1.3")
Selling Units: Single item
Single package size: 31X14X10 cm
Single gross weight: 1.800 kg IP video intercom kit Standard PoE Noise suppression and echo cancellation Configuration remotely via Web Stores messages and captured pictures in the TF card Remote unlocking via the client software or the mobile client Door Station/System Parameters Operation SystemEmbedded Linux operation system Flash 32 M

RAM 256 M

Door Station/Video Parameters Supplement LightIR supplement Resolution Main stream : 1920 × 1080
Sub stream : 640 × 480
Lens1 WDRSupport FOVHorizontal: 124° Vertical: 75° Video Compression StandardH.264 Door Station/Audio Parameters Audio InputBuilt-in omnidirectional microphone Audio OutputBuilt-in loudspeaker (more than 80 dB within 30 cm) Volume AdjustmentAdjustable Audio Compression StandardG.711 U, G.711 A Audio Compression Rate64 Kbps Audio Intercom Two-way audio communication

Audio QualityNoise suppression and echo cancellation Door Station/Capacity Parameters User Capacity2000 Door Station/Network Parameters Network ProtocolTCP/IP, RTSP Wi-FiWi-Fi 802.11 b/g/n Wired Network10/100 Mbps self-adaptive Ethernet 3G/4G/ Bluetooth/ Door Station/Device Interfaces Network Interface1 RS-4852 Wiegand0 Lock Control2 Exit Button2 Max. Door Contact2 Alarm Input4 Alarm Output0 Power Interface1 TAMPER1 USB Interface0 TF Card1 (reserved) Door Station/General Button1 Power Consumption < 10 W

Working Temperature-40° C to 53° C(-40° F to 127.4° F) Working Humidity10% to 95% Dimension174 mm × 91 mm × 29 mm InstallationSurface mounting Application EnvironmentOutdoor Protection Level IP65, IK08

Weight380 g Indicator3 Power Supply IEEE802.3af, standard PoE
12 VDC
Indoor Station/System Parameters Operation SystemEmbedded Linux operation system Memory128 MB Flash32 MB Indoor Station/Display Parameters Display Screen7-inch colorful TFT screen Display Resolution1024 × 600 Operation MethodCapacitive touch screen Indoor Station/Audio Parameters Audio InputBuilt-in omnidirectional microphone Audio OutputBuilt-in loudspeaker Audio Quality Noise suppression and echo cancellation

Audio Compression Standard G.711 U

Audio Compression Rate 64 Kbps

Indoor Station/Network Parameters Network Interface1 RJ-45 10/100 Mbps self-adaptive Wired Network 10/100 Mbps self-adaptive

Wireless Network Wi-Fi 802.11 b/g/n

Protocol TCP/IP, SIP, RTSP

Indoor Station/Device Interfaces RS-4851 Alarm Input8-ch alarm inputs Relay Output2 TF CardMax to 32 G, SD 2.0 or lower version Indoor Station/General Power Consumption ≤ 6 W

Power SupplyStandard PoE,12VDC Working Temperature -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity10% to 90% Dimension (L X W X H) 200 mm × 140 mm × 15.1 mm
