Turbo Washer for Pet Bottle Recycling System

Product Description

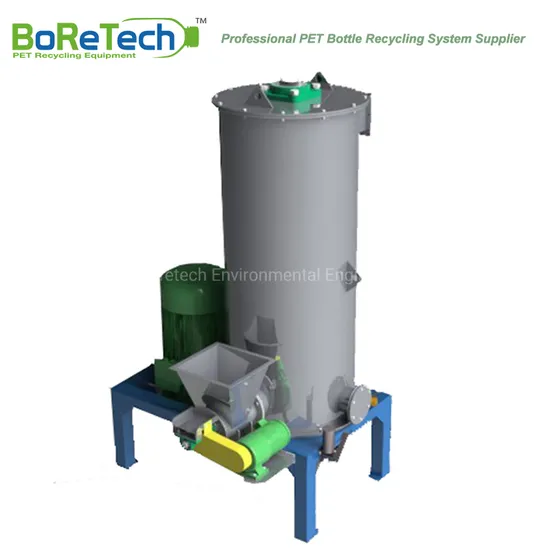

Turbo Washer for PET Bottle Recycling System
The glue attached on the flakes will affect the recycling application of the flakes.The function of turbo washer is removing the glue and small impruities from flakes by friction power to purify PET flakes.
BoReTech develops a new style machine which consists of turbo washing section and drying section. Glue will be removed by strong friction among flakes and paddles, then moisture rate of the flakes will be reduced to below 5% through centrifugal force. Water spraying device can avoid screen clogging and also purify the flakes. Paddles and screen are all demountable which is easy for daily maintenance and repairs. Paddles adopts alloy steel which has abrasion resistance and the service life will reach 10000 tons of flakes output.

Model	Capacity (kg/h)	Power (kW)	Rotor Diameter (mm)	Rotation Speed (r/min)	Dimensions (mm)
MCJ600	1500	97+0.75	600	725	1823*1593*2176
MCJ800	3000	55+0.75	800	725	1864*1721*2716
MCJ1000	6000	55+0.75	1000	725	2061*1983*3021
MTCS600	3000	18.5	600	1032	3000*1200*4000

Standard Process Flowchart for Your Reference (Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing
Friction Washing Section
This unit is comprised by hot washing with chemical water, turbo friction washing and automatic detergent dosing system. Closed-loop connection and reasonable collocation of the functions can effectively remove oil, glue and other impurities attached to flakes. All above control is automatic which reducing production costs and achieve high efficiency of the production process.
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
BoReTech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries. Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ
Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.
