Double Mast Aluminum Alloy Lift 12m for Hotel Cleaning Use

Product Description

Product Description

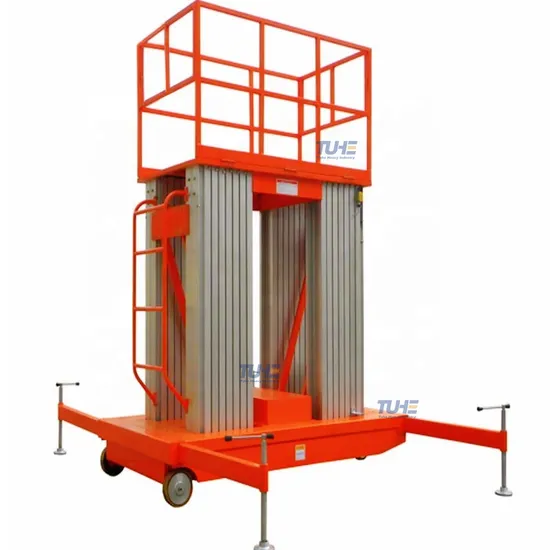

Vertical Mast Lift price's brief introduction:
Vertical Mast Lift price is made of high-strength aluminum alloy, with heavy load, high strength, light weight and small volume, which is convenient for storage and transportation. The lifting height is 4 to 14meters and the load is 200 kg. You can choose different models according to your requirements for different working heights. At the same time, as a manufacturer, the color can be customized according to your preferences. We will give you some safety accessories such as safety rope.
Vertical Mast Lift price' details:
1. Vertical Mast Lift price platform has a high-strength metal guardrail with a height of 1m. In addition, we will attach a safety rope when shipping to ensure the safety of operators
2. Vertical Mast Lift price is lifted by several chains to ensure stability during lifting.
3. The main body of lift is a high-strength aluminum alloy mast with high strength and light weight.
4. Lift can be controlled by the bottom control or by remote control.
5. The use of universal wheel can facilitate the rapid movement of lift in the working area.
6. Four outriggers can ensure the stability of lift.
Product details
Product Parameter

Model No. TH06 TH08 TH10 TH12 Lifting capacity kg 300 300 300 300 Folding maximum height(guardrail unfolding) mm 2150 2275 2400 2525 Folding maximum height(guardrail removed) mm 1190 1315 1440 1565 Overall Length mm 2400 2400 2400 2400 Overall Width mm 1150 1150 1150 1150 Platform Size mm 2270×1150 2270×1150 2270×1150 2270×1150 Minimumground clearance(folding) mm 110 110 110 110 Minimumground clearance(rising) mm 20 20 20 20 Wheelbase mm 1850 1850 1850 1850 Minimum turn radius(inner wheel) mm 0 0 0 0 Minimum turn radius(outer wheel) mm 2100 2100 2100 2100 Power source v/kw 24/3.0 24/3.0 24/3.0 24/3.0 Running speed(folding) km/h 4 4 4 4 Running speed(rising) km/h 0.8 0.8 0.8 0.8 Rising/falling speed sec 40/50 40/50 70/80 70/80 Battery V/Ah 4×6/210 4×6/210 4×6/210 4×6/210 Charger V/A 24/25 24/25 24/25 24/25 Maximum climbing ability % 20 20 20 20 Maximum working allowable angle / 2-3° 2-3° 2-3° 2-3° Way of control / Electro-hydraulic proportion control Driver / Double front-wheel Hydraulic drive / Double rear-wheel Wheel size(stuffed&no mark) / Φ381×127 Φ381×127 Φ381×127 Φ381×127 Whole weight kg 1900 2080 2490 2760

Company Prolife
Jinan Tuhe Heavy Industry CO.,Ltd is a large-scale professional and standardized machinery manufacturing enterprise integrating R&D, manufacturing and sales. The company has automated cutting equipment, automated welding equipment, shot blasting line, spraying line, welding robot and other modernizations. Production equipment. The leading product aluminum alloy lifting platform uses high-strength aluminum alloy profiles, with beautiful appearance, small size, light weight, lifting balance, safe and reliable, mobile traction with human traction, five-wheel auxiliary walking, lifting power design, AC Lifting (220V for civilian use), DC lifting (battery DC lifting solves the problem of no external power supply), AC and DC dual-use lifting (providing power sources for different environments), manual lifting (special use environments such as chemical production units, gas stations) Etc.
