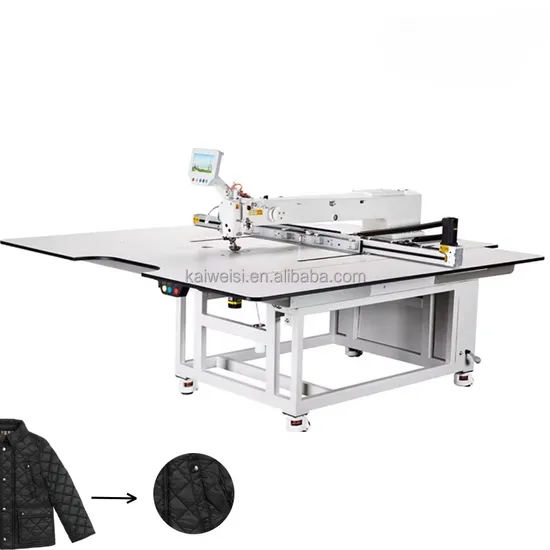

Quality Insured Intelligent Template Sewing Machine with a Good Price

Product Description

Product Description 1. Efficient intelligent sewing: one button operation, fully automatic sewing of set patterns, no intervention in the whole process! Simple, fast, efficient and accurate! Everyone can work.
2. High end sewing: patterns can follow the fashion trend and can be designed freely. There is no need to worry about the difficulty and accuracy of sewing! Intelligent formwork machine specially designed for ordinary workers.
3. Easy to operate: easy to operate color touch screen, Chinese and English operation interface can be switched freely, and all functions are clear at a glance. Basic operations can be performed by pressing the key as illustrated in the figure.
4. Template identification device: automatically identify the template, automatically identify the starting point of sewing, one key operation, in line with the standardized production process, and there is no need to worry about the novice!
5. Programming is simple and convenient,: DXF and PLT graphics generated by garment CAD software can be directly used through the upper software.
6. Thread breakage detection function: ensure sewing quality! 7.In addition, it can also be programmed directly by inserting USB flash disk to read graphics, or converted into a runnable program with upper software. 8. A wide range of fabrics can be sewn: both thin, medium and thick fabrics can be sewn.
9. Sewing head and punching head are independent, guarantee the actual working area, also make it convenient to open and reloading the template.

Item no	1390	1390(Without base)	1390W
Suitable sewing range	X-axis1300mm/Y-axis900mm
Floor area	2170mmx2130mm
Packaging Size	2230*1150*1270	2230*1150*1270	2230*1220*1360
Net weight/gross weight(kg)	511/610	425/520	555/630
Needle spacing	0.5mm to 12mm
Needle	DPx5#(7/9/11/16/22);DPx17#(12/23):DBx1 #(6-16)
Sewing speed	200rpm~3000rpm (when the stitch length is 2.5mm, ordinary wire material)
Recognizable template files	999
Number of memory programs	up to 999
Sewing machine motor	750W direct drive servo motor
Voltage	220V
Power specifications	2000W-2500W
Air specification	0.4-0.6MPa
Program input device	Computer USB data cable or USB flash drive..

Company Profile
Customer Visit
Certifications
Application
Customer Feedback
Packaging & Shipping
FAQ Q1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.

Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4.When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
