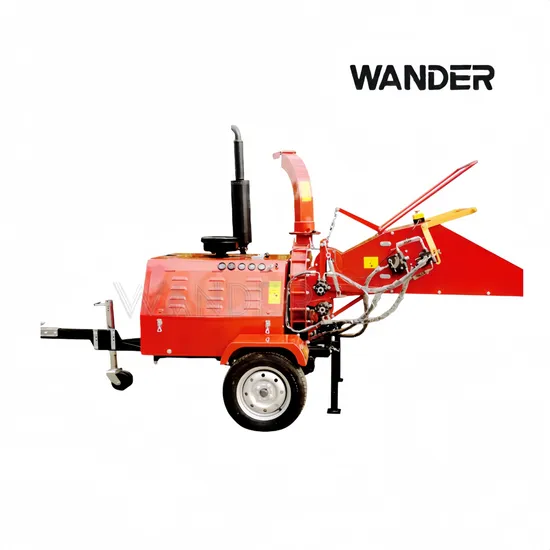

CE Approval 40HP Diesel Engine Wood Chipper Shredder Dh-40 with Double Hydraulic Feeding Rollers
Basic Info.
Model NO.
DH-40
Spindle Layout
Horizontal
Spindle Number
Double-Spindle
Feed Mode
Hydraulic Feeding
Controlling Mode
Artificial
Certification
CE, ISO, SGS
Customized
Customized
Condition
New
Color
Customized
After-sales Service
2 Years
Power
40HP
Diesel Engine
Model 490q (Electric Star,3 Cylinders)
Hydraulic Oil Tank Voloume
26L
Flywheel Diameter
24 Inches(600mm)
Flywheel Weight
200lbs.(95kg)
Rotor Plate Size
24 Inches(600mm)
Rated Rpm
1100
Flywheel Turning Speed
1025rpm
Rotor Plate Weight
126lbs.(57kg)
Number or Rotro Knive
1 Stationary Blade, 2 Movable Knives
Knife Material
65mn/A8
Discharge Hood Height
79 Inches (2000mm)
Hopper Opening
8`` X 9`` (200mm X 220mm)
Discharge Hood Rotates
360 Degrees
Transport Package
Iron Frame Packing or Wooden Packing
Specification
71``L x 57``W x 53``H (1800mm x 1450mm x 1350mm)
Trademark
Wander
Origin
Shandong
Production Capacity
5, 000 Unit/Units Per Year
Packaging & Delivery
Package Size
180.00cm * 145.00cm * 135.00cm
Package Gross Weight
827.000kg
Product Description
Product DescriptionDiesel Engine Hydraulic Wood Chipper used on medium and big forestry work,like round logs, square blocks, tree branches, wood staff and so on.
It has many advantaged:
1. CE approved,reliable quality
2. 18HP,22HP,40HP,50HP 4 cylinder , 4 stroke, engines available for selection
3. Powered by electric start diesel engine
4. With towing bar,easy transport and 1 pair of wheels convenient to move
5. Complete automatic hydraulic feeding roller, 3 blades, 8" diameter capacity,
6. Equipped with turning and brake lights, easy discharge hood and easy to change
the knives, 2" ball hitch & safety chains and leaf spring on the axle
7. Max 8 inch chipping capacity
8. Discharge hood rotates 360 degrees.
9. Safety guard
Product Parameters
| Technical details of self diesel engine Wood Chipper | ||||
| Model | DH-18 | DH-22 | DH-40 | DH-50 |
| Power | 18HP | 22HP | 40HP | 50HP |
| Diesel Engine | model 1110 (electric star,1 cylinder) | mode 1115 (electric star,1 cylinder) | model 490Q (electric star,3 cylinders) | model 4L68 (electric star,3 cylinders) |
| Chipper Capacity | 8"diameter/200mm | |||
| In-feeding System | Hydraulic Feeding (adjustable speed,stop-reverse- forward function) | |||
| Hydraulic Oil Tank Voloume | 26L | |||
| Flywheel Diameter | 24 inches(600mm) | |||
| Flywheel Weight | 200lbs.(95kg) | |||
| Rotor Plate Size | 24 inches(600mm) | |||
| Rated RPM | 1100 | |||
| Flywheel Turning Speed | 1025rpm | |||
| Rotor Plate Weight | 126lbs.(57kg) | |||
| Number or Rotro Knive | 1 stationary blade, 2 movable knives | |||
| Knife Material | 65mn/A8 | |||
| Discharge Hood Height | 71 inches(1800mm) | 79 inches (2000mm) | ||
| Hopper Opening /In-feeding Opening | 8`` x 9`` (200mm x 220mm) | |||
| Discharge Hood Rotates | 360 degrees | |||
| Sawdust Size | Thickness<4mm | |||
| Working Efficiency | 6-9CBM/H | 8-10CBM/H | 8-12CBM/H | |
| Settings | Turning lights, easy discharge hood, 2"Ball Hitch, Safety Chains and leaf spring on axle | |||
| Gross Weight | 1499lbs.(680kgs) | 1823lbs.(827kgs) | 1841lbs.(835kgs) | |
| Packing Size | 59``L x 59``W x 53``H (1500mm x 1500mm x 1350mm) | 71``L x 57``W x 53``H (1800mm x 1450mm x 1350mm) | ||
| Loading Capacity | 12pcs/20FT,32pcs/40HQ | 10pcs/20FT,20pcs/40HQ | ||
Packaging & Shipping
Packaging & Delivery
Selling Units: Single item
Single Overall size: 141``Lx59``Wx76``H 3575x1505x1930
Single package size: 71``L x 57``W x 53``H (1800mm x 1450mm x 1350mm)
Single gross weight: 1823lbs.(827kgs)
Package Type:
Iron frame packing or Wooden packing.
For one sample2200mmx1140mmx2200mm iron frame package with film dustcover.
For container then 2pcs in one 2200mmx1140mmx2200mm iron frame package with film dustcover.
