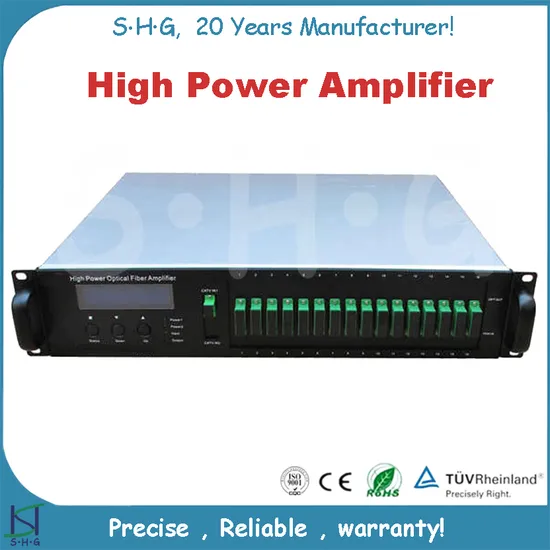

4/8/16/32/64 Channel CATV High Power Fiber Optical/Optic EDFA Amplifier

Product Description

SHG HA series fiber amplifier adopts multi-mode pumping laser and double-clad Erbium/ Ytterbium co-doped technology, which makes fiber amplifier output power up to 40dBm(10000mW), to fully drive the thousands of hundreds of user's requirement in large size FTTH distribution network.
Features
1. 2U, 19" standard container, easy to install.
2. Ultra-high power output, up to 5W of total output power, one can carry 2000~4000 PCS optical nodes.
3. Low noise figure, lower than 5.5dB in +5dBm input.
4. Very low CSO deterioration: <-70 dBc
5. 4, 8, 16, 32, 64 output port, each port power from 13 to 23dBm
6. Large LCD display screen
7. Perfect network management interface: Ethernet and RS-232 network interface.
8. Intelligent Temperature Control System: Adopts special temperature control chip, heat-dissipating and power consumption reduce by 30% compared with conventional products.
9. Adjustable output power
10. 1310nm, 1490nm, 1550nm WDM(Optional)can be integrated.
Block Diagram
Specification

Items		Units	Technical parameters
Operation wavelength		nm	1540~1565
Input optical power range		dBm	-3~+10
Total Output optical power		dBm	28	30	33	35		40
Output port No.			4, 8, 16, 32, 64
Each Port Power		dBm	13, 14, 15, 16, 17, 18,19,20,21,22,23...
Noise figure (note 1)		dB	≤5.5			≤6.0
Output power stability		dB	≤±0.2
Return loss		dB	≥45
Pumping leakage power	Input	dBm	≤-30
	Output	dBm	≤-45
Polarization related gain		dB	≤0.3
Polarization membrane dispersion (PMD)		ps	≤0.5
Optical connector type			SC/APC or LC/APC
Power voltage		V	AC110~265(50~60Hz) or DC48V
Power consumption		W	≤55				≤75
Operation temperature range		ºC	-5~+50
Max. Operation relative humidity		%	Max. 85%, non-condensation
Storage temperature range		ºC	-40~+80
Outer dimension		mm	483×440×88
Net weight		Kg	8.45
