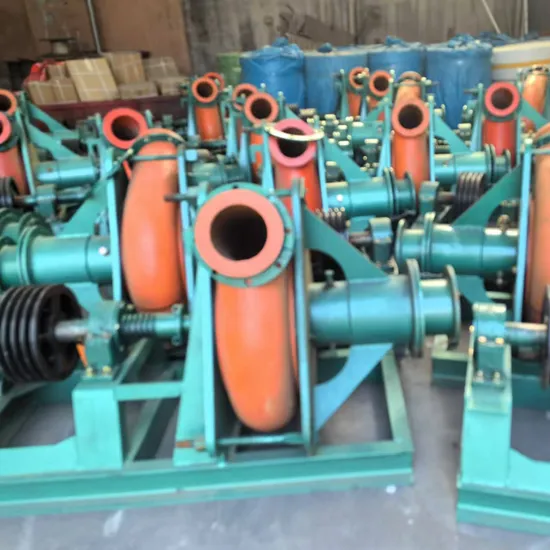

Dredge Mining Equipment Mud Pump Gold Dredge Water Sand Pump

Product Description

Dredge Mining Equipment Mud Pump Gold Dredge Water Sand Pump Product Description

Model	FLUX	PUMP LIFT	REV	POWER
4 inch	120 M3	32 m	1400 r/min	15 KW
6 inch	200 M3	30 m	1400 r/min	25 KW
8 inch	400 M3	28 m	1200 r/min	45 KW
10 inch	800 M3	26 m	1200 r/min	90 KW
12 inch	1200 M3	24m	1000 r/min	170 KW

Detailed Photos Three major features of water pump

Resistant to beating Large flow High wear resistance
This water pump is an impurity pump designed with reference to the two-phase flow theory. After experiments and industrial operation tests, it has the characteristics of high hydraulic efficiency and good wear resistance, and has stable performance when conveying media containing solid particles.
HIGH LIFT
ALL COPPER MOTOR
STRONG POWER
STABLE PERFORMANCE
SMOOTH OPERATION
LARGE FLOW
Scope of application: river dredging, mining, sewage treatment, sand suction
Drive mode: motor
Product material: wear-resistant cast iron
It is suitable for pumping sand from rivers, lakes, seas and reservoirs, pumping iron ore, gold sand, conveying mud, conveying tailings slurry, slurry slag and other media with strong abrasion and corrosion in industrial and mining enterprises. It has the advantages of energy saving, wear resistance, corrosion resistance, reliable and stable operation, high head, large flow, deep pumping, long conveying distance, wide application range, and can convey solid-liquid mixed concentration of up to 60%. It can be equipped with electric motor or diesel drive.
This water pump is an impurity pump designed with reference to the two-phase flow theory. After experiments and industrial operation tests, it has the characteristics of high hydraulic efficiency and good wear resistance, and has stable performance when conveying media containing solid particles. This water pump is an impurity pump designed with reference to the two-phase flow theory. After experiments and industrial operation tests, it has the characteristics of high hydraulic efficiency and good wear resistance, and has stable performance when conveying media containing solid
