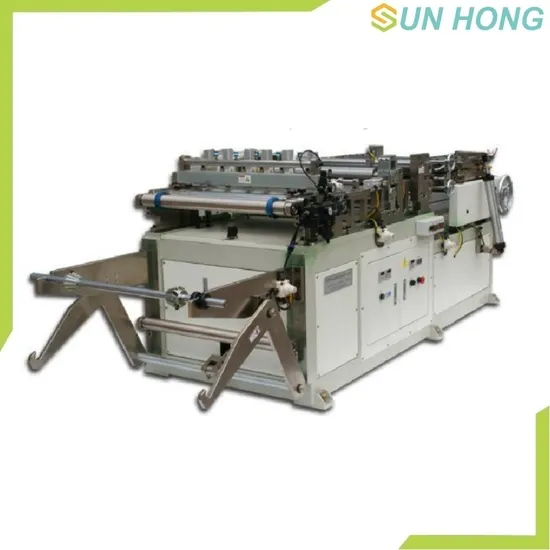

Truck Car Oil Fuel Filter Paper Folding Pleating Machine

US$3,000.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Sun Hong

Automatic Grade

Full-Automatic

Number of Folded Plates

Model

HD-1000-55

Max Width

1020mm

Pleating Height Range

5-55mm

Working Speed

0-125pleats/Min, Adjustable

Voltage

380V-50Hz

Motor Power

1.5kw

Pre-Heating Power

8kw

Range of Temperature

Room Temperature-200degrees

0.6MPa

Machine Weight

750kg

Machine Dimension

1600×1550×1650mm(L*W*H)

Transport Package

Wooden Case

Specification

make to order

Trademark

SUN HONG

Origin

China

Product Description

Full Auto Air Filter Pleating Cutting Assembly Production Line

Rotary Pleating Machine
1.Speed: 5-70m/min
2.Pleating height: 15- 75mm
3.Max. Pleating width 600mm
4.Motor power: 1.8kw
5.Weight: 1500kg
6.Size: 4200x1050x1300mm
7.Heating system :4kW
8.Working Pressure:0.5MPa Automatic cutting machine
It is mainly used for cutting after paper pleating.
1.Max. Width:650mm
2.Cutting Speed:5 pcs/min
3.Pleat Quantity:20-50mm
4.Working Witch:0.6MPa
5. Control Way:1) Sensor cut off 2) Foot pedal cut off 3) Button cut off Filter Paper Filling Machine
This machine is used to put the folded filter paper into the outer melt mesh by applying hot melt glue at the beginning and end.
1.Working width 610mm 800mm 1050mm
2.Speed 1- 3 pcs/min
3.Working pressure 0.5Mpa
4.Total power:4.5KW,
The machine is with 5kg hot melt gluing device,easy operation and high efficiency.
