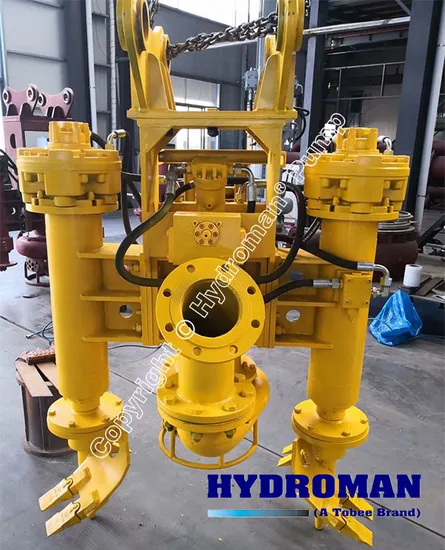

Hydroman Submersible Offloading Hydraulic Dredging Sand Pump for Harbour Construction

Product Description

Product Overview:

Submersible Offloading Hydraulic Dredging Sand Pump for Harbour Construction
Outlet	2 inch - 18 inch
Flow rate	50-1500m3/h
Head	10-50m
Max. particles	60mm
Max. concentration	70%
Dredging Cutterheads	Available
Sealing arrangement	Double mechanical seal
Materials	High chrome, Hyperchrome, SS304, SS316L, CD4MCu, Duplex 2205 etc

Product Details:
Hydroman® Submersible Offloading Hydraulic Dredging Sand Pump for Harbour Construction is extremly suitable for immersions depths of up to 80m and solids handling of 120mm in suspension, and Hydraulic Sand & Slurry Pump is a highly durable and reliable sand & slurry pump for dredging and transporting solids and a variety of other materials, so mainly used for dredging, excavating, and transporting materials such as rocks, gravel, and soils.
Hydroman® Submersible Offloading Hydraulic Dredging Sand Pump for Harbour Construction Accessory:
Details Images:
Hydroman® Submersible Offloading Hydraulic Dredging Sand Pump for Harbour Construction Features:
ADVANCED DESIGN
The mixing and excavating movement is created by the Hi-CR steel agitator cutter blades. The agitator lifts and sucks settled sediments and solids, creating a continuous uninterrupted flow of concentrated slurry into the dredge pump
ABRASION RESISTANCE
Long life and performance reliability are guaranteed by robust, heavy-duty construction. Lower operating RPM and High Chrome wear parts guarantees lower wear rates and prolonged component life.
SOLIDS HANDLING
Hydraulic dredge pump parts have been specially designed and shaped to provide outstanding performance, providing superb solids handling capabilities but with reduced wear (solid size up to 5 inches).
Hydroman® Submersible Offloading Hydraulic Dredging Sand Pump for Harbour Construction Applications:
▪ Waste sludge handling / Tank clean out / Waste collection ponds / Thickener clean out / Barge unloading.
▪ Waste collection pit / Ash sumps / Dredging waste ponds / Bark Collection pit / Clean up sumps.
▪ Gold tailings reclamation / Ball mill sumps / Settling and collection ponds / Underground slimes collection ponds / Conveyor tunnel sumps / Tailings back-fill system / Preparation plant collection sumps / Coal tailings relocation / Open pit slimes removal / Crusher sumps / Grinding area sumps / Flotation area sumps / Removal of material of material from thickeners / Truck wash sumps.
▪ Mill scale pits / Coke plant scale pit / boast furnace slag pit / Water treatment sumps / Clean up sumps.
▪ Dredging deep deposits (up to 120 m deep) / Recovery of sand not mined by primary dredge / Sands mining.
▪ Trench clean out and back-fill in pipe-cable laying projects / Clean out caissons in construction / Transfer of bentonite slurry / Overburden removal / Silt from gravel washing.
▪ Removal of silt build up at marinas, harbors, dock loading facilities, etc. / Clean out of contaminated sludge collection ponds / Reclaiming beaches / River, lake and canal clean out. De-silting water intakes / Emergency dump pond / Ash decant sumps / Fly ash collection sump / Ash and waste collection pit / Scrubber sludge transfer / Lime collection pit / Coal wash-down sumps.
▪ Coke conveyor spillage sumps / Crude oil tank clean out / Sludge transfer / Settling-collection pits / Tailings recovery / Coke fines collection pit / Relocation of sand filled drilling rigs / Drilling mud barge unloading.
▪ Pumping marble dust.
Product Packing:
Company Profile:
Hydroman® was founded by Tobee® in 2008's as a manufacturer of heavy duty submersible slurry pumps in North of China. Hydroman® mainly specialized in submersible slurry pumps, submersible sand pumps, submersible dredging pumps, Submersible agitator slurry pumps, Submersible Dewatering Pumps, Submersible sludge pumps, Submersible sewage pumps, hydraulic slurry pumps, hydraulic submersible dredge pumps, Excavator mounted hydraulic dredge pumps and all accessories like cutterheads, agitators, strainers, cooling jackets, excavator, sparge rings and hydraulic oil station etc.Hydroman® pump's humongous market share and its unrelenting competitiveness in the pump market have made us rank Top 10 in China for many years and were also selected as the Pacesetter Enterprise in the Chinese Industrial Pump Industry. This warrants enough proof of our distinctive position in the pump market today.
FAQ:
1. Are you the manufacturer or trading company?
Yes, We are real manufacturer for submersible slurry pumps with full export experience.
2. Is it easy for customers to change the parts by themselves?
Yes, Hydroman® submersible slurry and sand pump structure is simple, customers can change it very easily.
3. Whether the submersible slurry pumps in stock or not?
Yes, our submersible slurry pumps are always in stock.
4. What is the time for the submersible sand pumps can be sent out after payment?
It is only 7 -10 days that the submersible dredging sand pump will be sent out to you.
5. How long is the warranty period for your submersible dredge pump?
Our warranty period for the whole pump is 2 years except for wetted end parts.
