Flexible Electric Rotary Coil Handing Tong Lifter

Product Description

Flexible Electric Rotary Steel Coil Handing Tong Lifter
To know us
Gostern Rigging Co., Ltd.Is established in the year of 2001 in China.The company covers an area of 33000 square meters, more than 600 employees.It is a specialized slings company which can design, manufacture and market.
Our main products are steel wire ropes, wire rope slings, synthetic fiber belt slings, nylon braided ropes, chain slings, steel plate lifting clamps, metallurgy clamps, hanging beams, rigging accessories and so on.The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.The perfect performance has been highly appraised by Users.
Specification of our products
Flexible Electric Rotary Steel Coil Handing Tong Lifter

Technical Data
Rated Load	Coil width(mm)	Inter Diameter.(mm)	Outer Diameter(mm)	Self weight(kg)
3T	300-500	≥400	500	350
5T	750-900	≥400	900	450
	900-1100	≥506	1100	650
	1100-1300	≥506	1300	800
10T	750-900	≥506	900	600
	900-1120	≥506	1120	900
	1100-1300	≥506	1300	1000
	1300-1500	≥506	1500	1200
15T	900-1100	≥506	1100	1200
	1100-1500	≥506	1500	1600
25T	900-1100	≥506	1100	1800
	1100-1500	≥506	1500	2500
30T	1400-1660	≥506	1660	3400

Remark: The two pairs of internal-external clamp legs of the clamp move individually when lifting vertical coil, and they hold the two walls at the diametric direction operation. When the vertical coil is lift, the bottom surface of it should be absolutely horizontal. When operation, the clamp and steel coil hasnt relative slip, and he steel coils wont be damaged. The clamping force which jaw of clamp applies on steel coils is one time smaller than the one of the clamp with one jaw of clamp. The contact stress is small, which give less damage on steel coils by clamp.

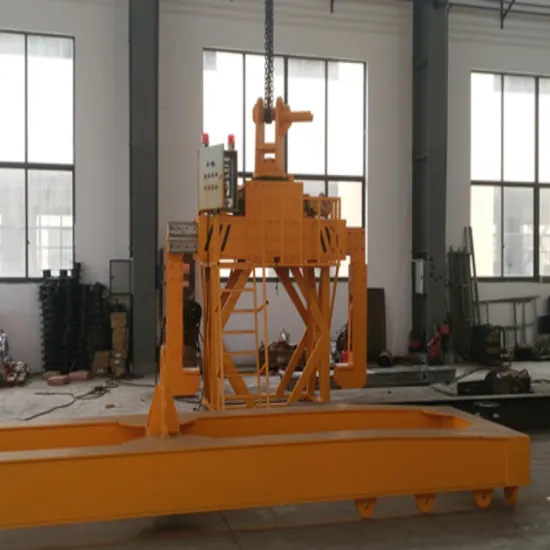

Plant view
MECHANICAL SYSTEM: when the vertical coil tong is on the coil, the ratchet turns of 90° and the levers open. As soon as the tong starts to raise, the coil is clamped between its inner and outer jaws.
ELECTRO-MECHANICAL SYSTEM: Vertical coil tongs operating depend upon a rack mechanism: the pinion is fed by a motorized worm gear box. The rack is integral with the gripping legs. This mechanism allows the opening and closing of the tong. They are usually used in hard workplaces marked by burdensome working conditions and hard handling. They can be used for all industrial applications in every kind of environment.


What we achieved

we have achieved many awards both domestic and worldwide.Pls see our achievements as bellow :



Our Difference
SATISFACTORY SERVICE
- Leatime 8-15 days
- 3 years warranty
- Varied packaging choice
-we welcome you to have a factory tour
Experience
- Long history in the sling area for almost 20 years
-sales volume increase to over 40 million per year

To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.

Our service

1. Our factory provide machine testing when customer come to our factory to see this machine. 2. We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings. 3. We can provide engineers to customer's factory to help installation and training workers if customer required. 4.Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty,we can provide spare parts just with factory cost.We will take response and provide technical support and repair of the whole machine lifetime.

Q&A
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 2-5 days, mass production time needs 1-3 weeks for order quantity more than one container
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1PC for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: Train and sea shipping both can provide. Shipping time depends on distance.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We offer you the ideal products and price .
Thirdly we strike the deal if everything goes well.
Fourthly We arrange the production.
Q6. Is it OK to print my logo and change package?
A: Yes. Please inform us formally before our production.we need comfirm with you the design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. We will do several inspection before we send to you.
