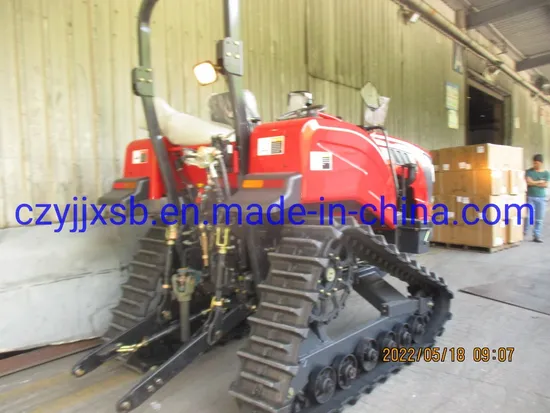

60HP Rubber Tracked Rotary Cultivator; Rubber Tracks Tractors, Crawler Tractor
| US$18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
W602
Application Field
Agriculture
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Arbor Configuration
Horizontal Axis
Color
Red
Warranty
2 Years
Engine
60HP
Weight
2580kg
Model
Rubber Tractor
Supply Ability
50000units/Year
HS Code
84378000
Production Capacity
10000units/Year
Product Description
50-100HP Farm Tractor,Rubber Tractor,Crawler TractorProduct Description 1.Farm tractors engine form adopt renowned directly injection vertical water cooled 4-stroke(In line,EFI,water cooled,4-stroke) YTO/CHANGCHAI engine.
2.Agricultural equipment tractors Walking rubber track pitch section*number*width: 90*46*300(W602,60HP) 90*46*350(W502,50HP) 90*50*350(W702/802,70/80HP) 90*51*350(W702,70HP) 90*54*400(W802/902,80/90HP) 90*56*500(W902/1002,90/100HP)
3.China best selling tractors cltuch:single-plate, single-acting, wet friction clutch Type.
4.Our farm tractors Minimum ground clearance(mm):260,400,410,530,610.
5.Equipment farming tractors of gear box:F12+R12;F8+R8;2(machanical gear)+2*2(hydraulic stepless speed change);Main transmission(hydraulic stepless speed change+machanical gear)+2(secondary speed change).
6.PTO:φ38,8teeth φ38,6teeth,Speed:720/1000.Linkage:II Rear Mount 3-point Linkage. We can produce and customize all sorts of medium-sized tractor 50 HP - 100 HP farm crawler tractors, diesel type, electric type can be customized production, and the tractor with all series farm implements, such as ridging machine,rotary tiller,disc plough, flattener,ditching machine,windrower,harrow, loader, backhoe, trailer,mower,grass chopper,silage corn straw harvester,small excavators etc you want. But firstly, tell us your preferred horsepower tractor.
| Product name | Rubber Tractor,Crawler Tractor | |
| Minimum ground clearance (mm) | 260 | |
| Engine | Mode | 3G25TC |
| Form | inline,efi,four strokes,water cooled | |
| Rated power(kW) | 44.1 | |
| Fuel | diesel fuel | |
| Rated speed r/min | 2400 | |
| Starting method | electric start | |
| Steering brake system | Steering System Type | planetary differential steering |
| Brake system type | wet friction pieces | |
| Drive train | Clutch type | single chip single action |
| Transmission type | single acting | |
| Transmission shift mode | 2(mechanical file)+2×(hydraulic stepless speed change) | |
| Walking system | Rack form | rigid frame type |
| Track Pitch section × number × width | 90×51×350 | |
| The theoretical speed of each file(km/h) | forward:mechanical block:4.86; 8.65 hydraulic block:0-5.75; 0-10.24 | |
| Working device | Lifter type | semi-Split |
| Tillage depth control | force adjustment | |
| PTO form | type1, non-independent | |
| Power output shaft speed(r/min) | 624/960 | |
| PTO shaft spline and the outer diameter mm | 8×38 | |
