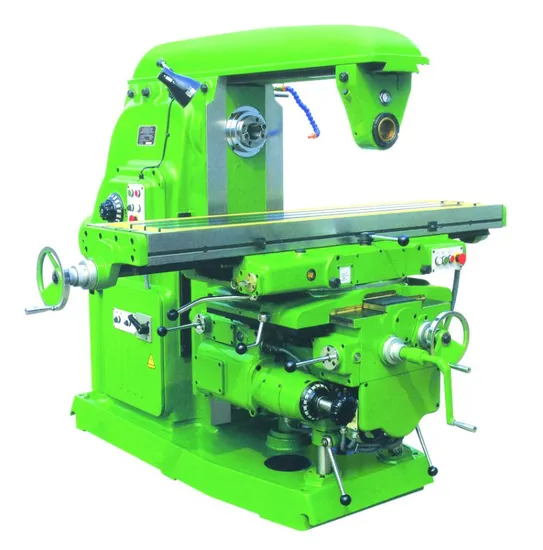

Lift Table Universal Horizontal Milling Machine (X6132)
| US$3,500.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6132
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Spindle
ISO40
Table Size
320X1325mm
Max Longitudinal Travel(Manual/Auto)
700/680mm
Max Transverse Travel(Manual/Auto)
255/240mm
Max Vertical Travel(Manual/Auto)
320/300mm
Distance Between Spindle Axis Table
30/350mm
Spindle Speed Step
18 Steps
Main Motor Power
7.5kw
Overall Size (L x W x H)
2294X1770X1610mm
N.W/G.W
2650/2950kgs
Transport Package
2pcsin One Wooden Case
Specification
ISO9001
Trademark
T brand
Origin
Shandong, China
HS Code
84592900
Production Capacity
300 Sets/Month
Product Description
Product Descriptionlift table Universal horizontal milling machine (X6132)
Main features of our milling machine:
1. Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
Product Parameters
Specification of our lift table milling machine:
| specification | unit | X6132 | X6132B | X6132H | X6132BH | |
| Table size | mm | 320X1325 | 320X1600 | 320X1325 | 320X1600 | |
| Max Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 | 700/680 | 900/880 | |
| Max transverse travel(manual/auto) | mm | 255/240 | ||||
| Max vertical travel(manual/auto) | mm | 320/300 | 410/390 | |||
| Max rotary angle | ±45° | |||||
| Distance between spindle axis table | mm | 30/350 | 30/440 | |||
| Spindle speed step | 18 steps | |||||
| Spindle speed range | 30-1500 | |||||
| Feed range of table travel | steps | 18 steps | ||||
| Main motor power | kw | 7.5 | ||||
| Feed motor power | kw | 1.5 | ||||
| Overall size (L x W x H) | mm | 2294X1770X1610 | 2294X2050X1610 | 2294X1770X1790 | 2294X2050X1790 | |
| N.W/G.W | kg | 2650/2950 | 2740/3040 | 2850/3150 | 2940/3240 | |
Standard accessories of our horizontal milling machine:
Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches.
Optional Accessories:
DRO on X, Y, Z--AXIS.
Universal dividing head.
Rotary worktable.
Clamping kit
