US$1,200.00-1,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Tank Insulation
Certification
CE, ISO9001
Heat Exchanger
Stainless Steel 316L ,2PCS
Inner Tank
316L Stainless Steel
Insulation
50mm High Density Polyuranthe Foaming
Transport Package
exported cartons
Specification
300L, double coils
Production Capacity
30pc/day
Product Description

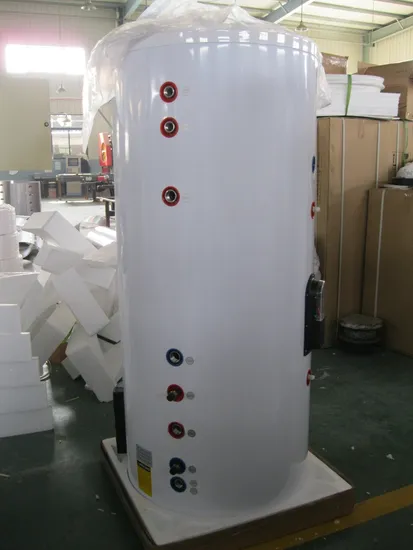

Solar water tank
heat exchanger :material 316L stainless steel
inner tank with 316L stainless steel for anti-rust better than 304 stainless steel
Which work bearing pressure which from tap water, so the pressure is same as tap water pressure, comsumer can use the water confirtable.
Item No. | Tank Capacity | Tank Size | Inner Tank Thickness | Heat | Insulation | Packing | Container Loading Sets |
Exchanger | Thickness | Volume | 20GP | 40GP | 40HQ |
VPDPT100 | 100L | Φ480 mm*1000 mm | 1mm | 1Pcs | 50 mm | 0.37 cbm | 76 | 157 | 184 |
VODPT150 | 150L | Φ480 mm*1450 mm | 1.2 mm | 2 Pcs | 50 mm | 0.5 cbm | 56 | 116 | 184 |
VODPT200 | 200L | Φ550 mm*1400 mm | 1.5 mm | 2 Pcs | 50 mm | 0.57 cbm | 49 | 102 | 119 |
VODPT250 | 250L | Φ580 mm*1470 mm | 1.5 mm | 2 Pcs | 50 mm | 0.7 cbm | 40 | 83 | 97 |
VODPT300 | 300L | Φ580 mm*1740 mm | 1.5 mm | 2 Pcs | 50 mm | 0.81 cbm | 35 | 72 | 84 |
VODPT400 | 400L | Φ700 mm*1630 mm | 2.0 mm | 2 Pcs | 60 mm | 0.98 cbm | 29 | 59 | 69 |
VODPT500 | 500L | Φ700 mm*1845 mm | 2.0 mm | 2 Pcs | 60 mm | 1.17 cbm | 24 | 50 | 58 |
VODPT600 | 600L | Φ700 mm*2230 mm | 2.0 mm | 2 Pcs | 60 mm | 1.35 cbm | 21 | 43 | 50 |
VODPT700 | 700L | Φ800 mm*1930 mm | 2.0 mm | 2 Pcs | 50 mm | 1.53 cbm | 18 | 38 | 44 |
VODPT800 | 800L | Φ900 mm*1720 mm | 2.5 mm | 2 Pcs | 50 mm | 2.88 cbm | 10 | 22 | 26 |
VODPT1000 | 1000L | Φ900 mm*2000 mm | 2.5 mm | 2 Pcs | 50 mm | 3.31 cbm | 8 | 18 | 18 |
