Lab Scale Small Mini Textile Wool and Cotton Yarn Fiber Ring Spinning Frame Machine

Product Description

Product Description
Product Description

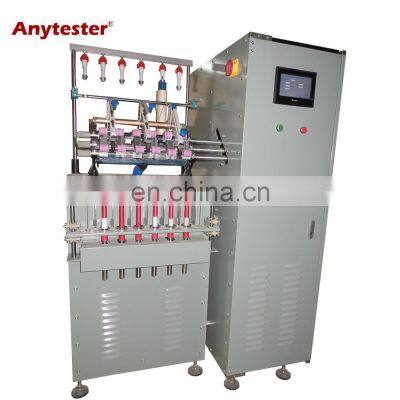

AT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method.
Features
Easy to operate
Touch screen & PLC control;
Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
Frequency converter of high efficiency to control roll speed
Skilled DesignPressurizing system :spring pressure cradle
Three-up-three-down drafting structure
Specification

Model			AT206
Number of spindles			6
Fiber type			Cotton or cotton-type chemical fibers
Twist range			Customized for wool
Draft range			50~250twists/meter
Output capacity			Approx. 2~50
Roll diameter			0.25~0.5kg/h
Ring diameter			¢25mm
Spindle speed			Φ38 ~ 45mm
Twist direction			Max. 12000rpm
Power supply			Z or S, settable

Packing & Delivery

Packaging
Size(cm)	73 (L) * 72 (W) * 168.5 (D)
Weight	260 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.
