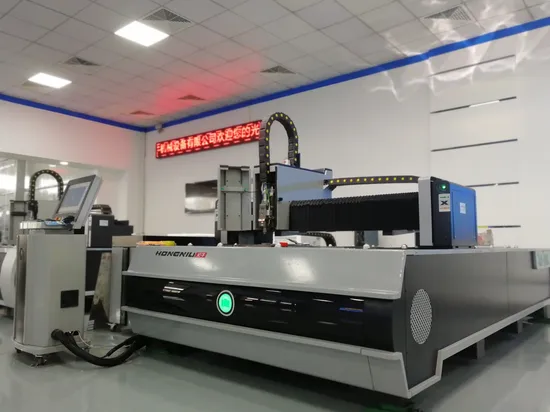

Fiber Laser Cutting Machine 3000W
| US$53,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HN-3015C
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Transport Package
in The Film
Specification
4.5*2.28*2.2m
Trademark
Hongniu
Origin
China
HS Code
8456110090
Production Capacity
300 Sets/Year
Product Description
Product DescriptionHN-3015C 2KW 3KW 4KW Single table fiber laser cutting machine
Product Parameters
| Model | HN-3015C |
| Working Area | 3000*1500mm/4000*1500mm/4000*20000mm/6000*2000mm |
| Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W |
| Laser source | Raycus/IPG/MAX |
| Transmission system | Double serve motor &gantry&rack&pinion |
| Motors & Drives | FUJI/YASKAWA |
| Laser Head | Raytools (manual/auto focus for optional) |
| Electrical Components | Schneider |
| Electronic Proportional Valve | SMC |
| Reducer | Shimpo/Motoreducer |
| Rack & pinion | LEITESEN/YYC |
| Guide rail | PEK/HIWIN |
| CNC Controller | BCS100 V3.0 |
| Software | CYPCUT |
| Chiller | S&A/HANLI |
| Max Idle Speed | 80m/min |
| Max Acceleratio | 1.5G |
| Positioning Accuracy | ±0.03mm |
| Re-Positioning Accuracy | ±0.02mm |
| Gross Power | <21 KW |
| Power Supply | Three-phase 380V/50Hz/60Hz |
| Gross Weight | 4500KG |
Detailed Photos
Samples
Packaging & Shipping
Certifications
Company Profile
Service
1) 2 years warranty(no human reason)2) We will provide the consumable parts at an agency price3) 24 hours online service, free technical support4) Machine has been adjusted before delivery, operation disk is included in the delivery5) We have manual instruction and CD ( Guiding Videos) for software installation, operation and machine using and maintain
