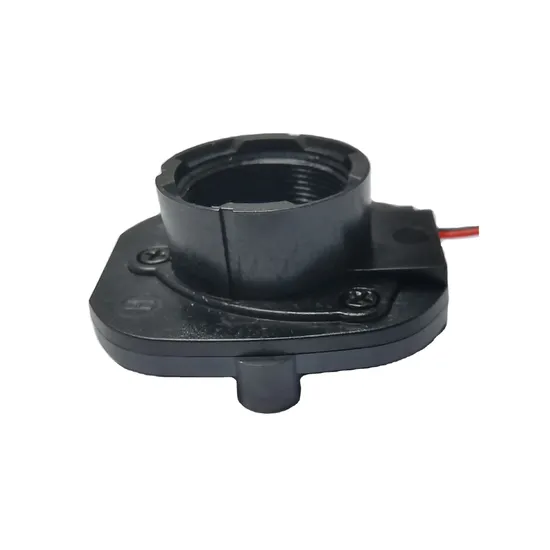

C Mount M12XP0.5 Pitch 20mm Day-Night IR-Cut Filter Switch Wavelength Pass Switcher
| US$4.60-6.60 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
22-001-011
Kind
Wavelength Pass Switch
Certification
RoHS, ISO9001: 2000
Feature
High Definition, Mini Size
Driving Mode
Excitation Type
Operating Voltage
3.5~12V DC
Resitance
45±8Ω
Openning Size
Φ15.2mm
Filter Size
6.8X6.4mm
Suitable Lens
M12XP0.5
Mount Height
6.3mm
Pitch
20mm
Life
200000CS Min.
Transport Package
Carton
Specification
(24.1x24. x11.9)mm
Trademark
CCHT
Origin
Sichuan
HS Code
9002209000
Production Capacity
20000PCS/Month
Product Description
| Technical Parameter of IR-CUT Switch | |||||||||
| NO. | Model No. | Dimensions (mm) | Openning size(mm) | Filter size (mm) | Filter thickness (mm) | Resistance (Ω) | Driving Voltage(V DC) | Current (mA) | Durability (CS Min) |
| 1 | 01-001-009 | 42.26x20x15.2 | 18.0x18.0 | 21x19 | 0.50 | / | 3.5~4.5 | 230 Max | 100,000 |
| 2 | 01-001-012 | 35.17x22.5x13.8 | 8x7 | 9x8.7 | 0.30 | 37±10 | 4.5~5.0 | / | 100,000 |
| 3 | 01-001-014 | 25.55x22.82x11.2 | Φ6.6 | 7x0.65 | 0.21 | 50±10 | 3.8~5.0 | 70~90 | 100,000 |
| 4 | 01-001-015 | 48x33x17.6 | 16x16 | 16x16 | 0.30 | / | 4.5~5.0 | 300 Max | 500,000 |
| 5 | 03-001-001 | 26.15x24.78x9.2 | 7x6 | 7x6 | 0.21 | 23±5 | 3.5~5.0 | / | 50,000 |
| 6 | 03-001-002 | 27x24.78x11.2 | 7x6 | 7x6 | 0.21/0.30 | 23±5 | 3.5~5.0 | / | 50,000 |
| 7 | 03-001-003 | 25.6x24.8x12.3 | Φ15.2 | 6.93x6.43 | 0.21 | 45±8 | 3.0~12 | / | 200,000 |
| 8 | 03-001-004 | 21.2x20x8.2 | 6.6x5.5 | 0.21 | / | 2.5~5.0 | 60mA | ||
