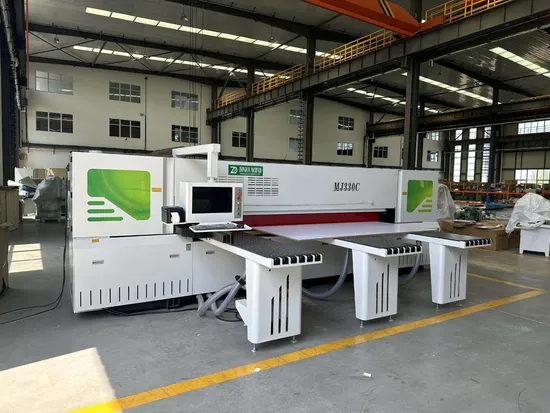

CE Approved Wood Large Cutting Machine CNC Beam Saw with High Quality
Basic Info.
Model NO.
MJ330C
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Services and Video Services
Target Audience
Wood Working Population, Wholesaler and Retailer
Edition
Latest Edition
Special Service
Optional Upgrade
Character
Thick and Solid
Transport Package
Plywood Cases
Specification
6100*6200*1700mm
Trademark
QDZD
Origin
Qingdao, China
HS Code
84659100
Production Capacity
50 Sets/Month
Product Description
CNC Beam Saw Machine Wood Edge Cutting Machine Intelligent Panel Saw MachineryMJ330C
Product Parameters
Here are different kinds of CNC beam saw.Details are as followed.
| Model | MJ270C | MJ330C | MJ380C |
| Sawing length | 2700mm | 3300mm | 3800mm |
| Sawing thickness | 85/100/120mm | 85/100/120mm | 85/100/120mm |
| Dia. Of main saw blade | 355/400/460mm | 355/400/460mm | 355/400/460mm |
| Axis dia. of main saw blade | 30/60mm | 30/60mm | 30/60mm |
| Rotate speed of main saw blade | 3950/4500 rpm | 3950/4500 rpm | 3950/4500 rpm |
| Dia. of grooving saw blade | 180mm | 180mm | 180mm |
| Axis Dia. of grooving saw blade | 25.4/30mm | 25.4/30mm | 25.4/30mm |
| Rotate speed of grooving saw blade | 6300 rpm | 6300 rpm | 6300 rpm |
| Saw carriage forward speed | 0-120 m/min | 0-120 m/min | 0-120 m/min |
| Saw carriage back speed | 60-120 m/min | 60-120 m/min | 60-120 m/min |
| Head saw motor | 7.5/11 kw | 7.5/11 kw | 7.5/11 kw |
| Grooving saw motor | 1.5kw | 1.5kw | 1.5kw |
| Saw carriage drive motor | 2.2kw | 2.2kw | 2.2kw |
| Automatic feeding motor | 1.2kw | 2kw | 2kw |
| Pusher motor | 2kw | 2kw | 2kw |
| High pressure blower motor | 2.2kw | 2.2kw | 2.2kw |
| Total power | 17/21kw | 21/27kw | 21/27kw |
| Automatic feeding speed | 0-120 m/min | 0-120 m/min | 0-120 m/min |
| Operation pressure | 5-7kg/cm | 5-7kg/cm | 5-7kg/cm |
| Workbench height | 950mm | 950mm | 950mm |
| Dimensions (L*W*H) | 5990*5200*1800mm | 6100*6200*1700mm | 6450*6800*1900mm |
Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
Detailed Photos
High quality accessories
1.Air floating platform under pressure beam, avoiding board scratching and assuring smoother board movement.
2.It has latest design mechanical clip.
3.Use saw height independent lifting system.
We have more than just these benefits, if you are interested, please contact me directly. Packaging & Shipping
