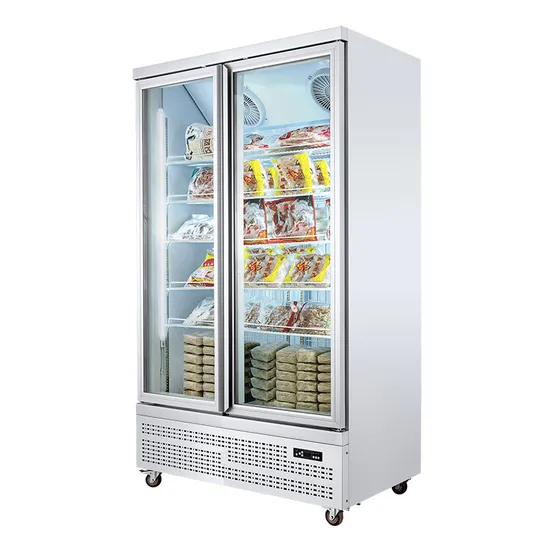

1/2/3/4 Glass Door -24º C Upright Display Refrigerator Freezer

Product Description

More than 30 years professionally produce the high quality refrigeration products, export a lots around the world every year, famous brand compressor, stable excellent quality, working highly efficient in an energy-saving way.
We can supply a complete range of refrigeration equipment, including China best commercial and home refrigerator, vertical display refrigerator, island freezer, chest freezer, cake and ice cream showcase, ice maker, kitchen refrigeration equipment, wine cooler, car refrigerator, cold room and -86ºC degrees blast freezer etc.
Product Application:
This portable upright/vertical commercial display refrigerator,display freezer is mainly used in bar,hotel,restaurant,canteen,grocery,cafes,bakery,supermarket etc.And for chiller food,such as ice cream, seafood, meat,beer, beverage, droft drink, medicine and so on that's to maintain a fresh state. 18/24ºC No frost,fan cooling upright display beverage cooler/display freezer/glass door chiller/beverage showcase

Model	GM-380SZX	GM-1180SZX	GM-1860SZX	GM-2460SZX
Capacity	380 L	1200 L	1650 L	2250 L
Cooling system	Fan cooling	Fan cooling	Fan cooling	Fan cooling
Auto-Defrost	Yes	Yes	Yes	Yes
Control system	Electronic	Electronic	Electronic	Electronic
Temperature digital screen	yes	yes	yes	yes
Product size	620*780*2100	1260*780*2100	1860*780*2100	2460*780*2100
Paking size	720*880*2200	1360*880*2200	1960*880*2200	2560*880*2200
Qty.of 40`HQ(pcs)	44	21	13	8
Qty of doors(pcs)	1	2	3	4
Glass door type	hinged door	hinged door	hinged door	hinged door
Defogging glass door	Yes	Yes	Yes	Yes
door frame material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
Door auto closing	Yes	Yes	Yes	Yes
foaming material	Polyurethane	Polyurethane	Polyurethane	Polyurethane
Adjust shelves(pcs)	5	10	15	20
wheels	4	4	4	6
Led light (inside and outside)	yes	yes	yes	yes
Voltage and frequency	220V / 50HZ	220V / 50HZ	220V / 50HZ	220V / 50HZ
Cabinet Tem. (ºC)	-18~-22	-18~-22	-18~-22	-18~-22
Refrigerant	R404a	R404a	R404a	R404a
Cabinet material	galvanized sheet	galvanized sheet	galvanized sheet	galvanized sheet
compressor	Secop	Secop	Secop	Secop
Power (W)	520	850	1400	2000
condenser	Iron(silk tube)	Iron(silk tube)	Iron(silk tube)	Iron(silk tube)
Evaporator	Copper	Copper	Copper	Copper
Compressor installation location	upper apex	upper apex	upper apex	upper apex

Display showcase cooler with fan cooling
Feature:
1. Famous brand thermostat;
2. Auto defrost system;
3. High efficiency EC Fans;
4. Low noise,Low energy consumption;
5. Three layers tempered glass;
6. Self-closing doors;
7. Cabinet material:Powder coated steel;
8. Interior liner:Pre-painted cold-roll steel sheets;
9. Two safety interior LED light in cabinet;
10. Auto defrost glass door;
11. Digital Thermostatic control, -18ºC;
12. Forced-air system, most efficient cooling with no need for defrost;
13. CFC-free and polyurethane insulation,environmental friendly;
14. Copper fins or Bundy tube;
15. Sturdy PVC-coated wire shelves designed to hold any container upright;
16. Heavy duty castor with brake;
17. Versatile wheel;
18. Removable door gasket for trouble-free cleaning.Production process:
Display refrigerator FAQ
What if the freezer is making abnormal noises?
Check following :
1.The freezer unleveled
2.Parts loose
3.Condenser blade touching loose wiring.
4.Refrigerant leaked out
5.Motor bearings worn out.
What if there is water on the floor under and /or around freezer?
Check following:
1.The drain hose outside of the drain pan
2.Leak in the drain pan
3.Excessive ambient humidity and door openings.
FAQ
1. Q: How about the quality?
A: We use all the best high quality raw material and professional produce.
2. Q: Which style should we choose?
A: We have many models for your choice. Please tell us the application, materials, output and pressure all what you wanted, then we'll introduce.
3. Q: Can we have customized model?
A: Yes. We can make the customized machine according to your correct requirements.
4.Q: What should we do if there are some problems with the machine?
A: You can refers to the Operate Instruction or contact us for online instruction. Also, our engineers are available to service overseas.
5.Q: What is the delivery time?
A: 2 weeks for sample model, 30 days for customized model. It depends for mass production.
6.Q: How about the package?
A: We have plywood case to protect the machine from damage during the long-distance delivery.
7.Q :How about the payment?
A: TT, 30% deposit + 70% before shipment.
