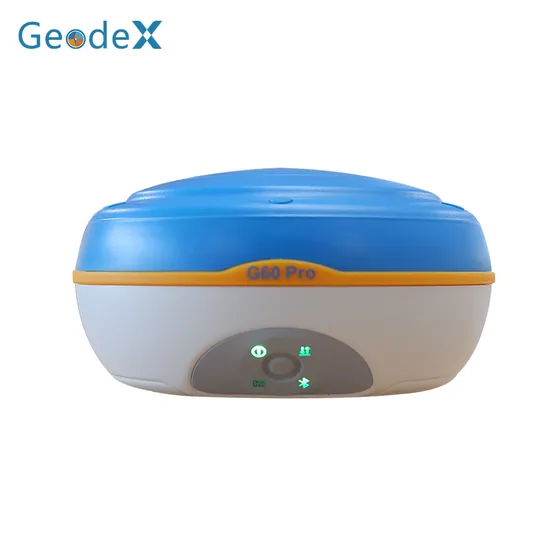

Geodetic Imu Tilt Survey Rtk Gnss Receiver with Ar Visual Stakeout Camera

Product Description

	G60Pro Data Specifications
System Configurations		Communication Configurations
Satellites Tracking	GPS: L1C/A, L1C,L1P,L2C,L2P, L2CL5 GLONASS: L1, L2, L3 BDS: B1I, B2I, B3I, B1C, B2a, B2b Galileo: E1, E5a, E5b, E6 QZSS: L1, L2, L5, L6 SBAS: L1, L5; IndiaIRNSS: L5	Network:	Integrated Full network multiple frequency band 4G modem, support WCDMA/CDMA2000/TDDLTE/FDD-LTE
		Frequency:	LTE FDD B1/B3/B5/B8 LTE TDD B34/B38/B39/B40/B41 WCDMA B1/B5/B8 GSM 900/1800MHz
	Channels:1408	Network Protocals:	Ntrip Client, Ntrip Server, TCP, one key CORS,Tersus Caster Service(TCS)
Accuracy	DGPS Positioning (RMS): -Horizontal:0.25m ±1ppm RMS -Vertical:0.5m ±1ppm RMS	WiFi:	802.11 b/g standard, access point and client modes support access to hotspots for correction transmission
	SBAS Differential Positioning (RMS): <5m 3DRMS	Bluetooth:	Integrated bluetooth 4.0m, work range <=50m
		Wire Communication	USB:Type-C fast charger
	Static & Fast Static (RMS): -Horizontal:2.5mm ±0.5ppm -Vertical:5mm ±0.5ppm	Built-in Radio	Transmitting:/Receiving 1W/2W(Adjustable), with high power shift, work distance can be up to 12KM
			Frequency:410MHz~470MHz, support frequency settings
	RTK <30KM (RMS): Network RTK(RMS): -Horizontal:8mm±1ppm Horizontal:8mm±0.5ppm -Vertical:15mm ±1ppm -Vertical:15mm ±0.5ppm		Work Mode: Semiduplex
			Air Baud Rate:4800/9600/19200bps
			Radio Communication Protocol: Support TRIMATLK,TRIMMARK3,PCCEOT and so on.
	Spead Precision(RMS):0.03m/s
Initialization & Start	Initialization Time(Typical):<10 seconds	Radio Repeater	Exteral Radio Relay
	Initialize Reliability:>99.99%	Tilt Survey	within 60° (no calibration required)
	Initial Position Time(TTFF): -Cold Start:<60s -Warm Start:<15s	Interface	EMO 5pin Port: External Power Supply, Serial Port Control, Wireless Communication
			USBType-C port: Support data transfer /charging
	Re-capture:<1s		SIM Card Slot: Nano-SIM
	Time Precision (RMS):20ns		Antenna Port: UHF Antenna Interface
	Tilt Compensation Accuracy: -Unlimited Tilt Angle 8mm+0.4mm/tilt -Within 60°: <2cm	Electrical Characters	USB:Type-C Port: Data Transfer /Charging
System & Data	Operation System: Linux		Built-in 3.7V*3400*4mAh Lithium Cell Battery
	Compatiable with all software supported by the Android OS device		Charging Time:3 Hours (20%--90%)
	Storage:32GB, support for MicroSD storage extensions		Battery Work Time: Rover Station: 12 hours, Base Station: 15 hours, Static: 15 hours
	Differential Data Formats: RTCM2x, RTCM3x, CMR&CMR+SCMRx Dat RINEX, NMEA-0183, Binary system, outputs
		Physical Characters:	Body Size:Φ146mm×146mm *H71mm
			Material: Titanium Magnesium Alloy
	Data Update Rate:1Hz-20Hz		Net Weight:815g (With Built-in Battery)
Design	Key-press:Power Key		Working Temperature: -40ºC~+75ºC
	LED Indicator: 4 LED Indicators		Storage Temperature: -55ºC~+85ºC
	Voice broadcast:Support TTS Voice broadcast		DustProof & WaterProof:IP67, Protection from a water depth of 1m for 30min
	WebUI Function : Support internet browser		Shockproof: MIL-STD-810G
	Intelligent Remaining Battery Display:Support		Humidity:100% condensation resistance
Software	Field Software: Geodex X Survey		Resistance: Withstand Free Drop From 2m to concrete with pole

AR Stakeout for Visual Surveying • Increased Efficiency & Accuracy:
With a simple glance, surveyors can instantly obtain visualized path and direction information, and execute precise stakeout, improve point stakeout work efficiency by 50%. • Advanced AR Technology:
AR Stakeout function of G60Pro GNSS is powered by cutting-edge Augmented Reality (AR) technology, providing real-time visualization guidance on surveying.• Integrated AR Stakeout Camera:
Enables points and paths data to overlay real-world environments, transforming complex measurements into intuitive, visual experiences.
Compact & Lightweight Design • Net Weight: 815g - Lightweight and easy to carry, reducing strain during fieldwork. • Portable - Compact design enhances mobility and convenience on-site.
Brighter LED Indicators
Super-Fast Charging Technology
• Quick Full Charge:
Fully charges in just 3 hours using the latest fastcharging technology. • Power Bank Compatible:
Operate the device while charging for uninterrupted use. • Reliable Power:
Quickly recharge to ensure smooth and continuous operation. Long-Lasting Battery Life
•High-Capacity Battery:
a 3.7V 3400×4mAh lithium cell for long usage.
•Extended Operation:
Provides up to 15 hours of continuous operation on a single charge.
•All-Day Reliability:
Designed to support lengthy fieldwork without interruptions.
•Durable Power:
Keeps you focused on the task, even in challenging environments.
IMU Tilt Survey Technology
•No Calibration Needed:
Immediate tilt compensation eliminates the need for leveling.
•Stable Data:
Collects accurate data with high stability in RTK systems.
•Wide Tilt Capability:
Handles up to 60° inclinations with an error margin of <2cm.
•Boosted Efficiency:
Improves surveying efficiency by 30%.
Long-Range Transmission with GeoMask II Protocol
•Extended Range:
Transmits up to 10 km with GeoMask II protocol.
•Energy Efficient:
Operates with low power consumption.
•Interference Resistant:
Maintains signal integrity in challenging environments.
•Reliable Performance:
Ensures real-time, stable data transmission.
•Remote Operation:
Expands the working range, supporting remote collaboration.
Efficient Professional Survey App SurDex V6.0
• Comprehensive Features:
SurDex V6.0 Survey App offers a comprehensive suite of surveying & mapping functions like AR Stakeout, Auto CAD Mapping, Road Design, Electric Lines Survey, etc., to accommodate diverse surveying &
engineering projects. It delivers precision,flexibility, and reliability.
• Keeping Updated to Stay Ahead:
SurDex V6.0 Survey App is designed to offer the best possible performancethrough regular updates and optimizations. By constantly refining the app, it ensures that users have access to the latest
features,bug fixes, and improvements. Geodex also provides real-time technical support, allowing users to quickly resolve any issues or challengesthey encounter while on the job.
• Globalization:
Supports global coordinates and global languages.
Smart 4G Industrial Surveying PDA •Powerful & Professional Solution:
The Geodex P9III is a Smart Industrial Surveying Pocket Terminal, delivers a powerful and professional solution for precise surveying and mapping.
• Extra Large 5.5-inch HD Touch Screen
• 64GB ROM+4GB RAM, Sufficient Storage Capacity
• Advanced Android 11 OS
• Rear 13 Million Pixel HD Camera
• Full Alphanumeric Keyboard
• Support Google Protocol Framework
