Factory Price Acrel UL Certificate Akh-0.66-K 5A/1A/333mv Ouput Low Voltage AC Split Core Current Transformer for Renovation Project

Product Description

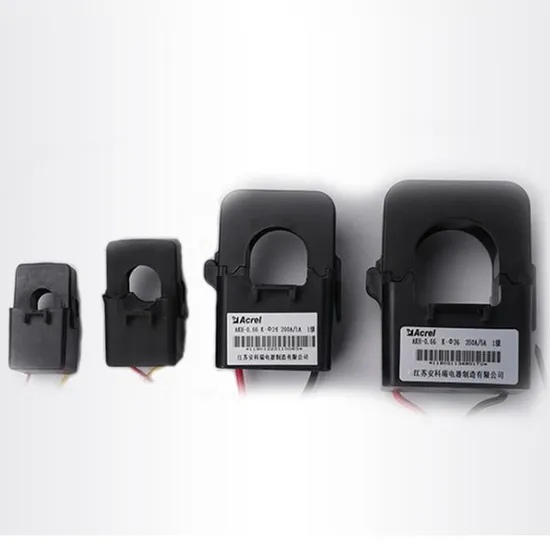

Product Description AKH-0.66/K-Φ Series Split Core Current Transformer
GeneralThey are patented products with beautiful appearance, convenient installation and wiring, mainly used in power operations and electricity reconstruction projects. Generally, output are standard signal. The advantages of small size, high precision, strong carrying capacity and convenient installation, saving the manpower, material resources, financial resources and improve the efficiency for users.
Features
Technical parameter

Model	current ration(A)	Accuracy	Rated load(VA)	Max cable diameter(mm)
AKH-0.66/K-φ10	5 A/1.25mA	0.5	10	φ10
	(10-20) A/5mA
	(40-60) A/20mA
AKH-0.66/K-φ16	(20-50) A/10mA	0.5	10	φ16
	(40-100) A/20mA
	100 A/40mA
AKH-0.66/K-φ24	(60-200) A/20mA	0.5	10	φ24
	(100-250) A/40mA
	400A-100mA
AKH-0.66/K-φ36	(100-200) A/10mA	0.5	10	φ36
	(200-400) A/20mA
	(300-600) A/100mA
	400 A/40mA
	600 A/75mA
AKH-0.66/K-φ24	(150-200) A/5(1)A	1	1	φ24
	(250-300) A/5(1)A		1.5
AKH-0.66/K-φ36	(300-400) A/5(1)A	1	1.5	φ36
	(500-600) A/5(1)A	0.5	1.5

Dimension
The transformers' secondary outlet wire is 1.5mm² lead, whose standard length is 1m(±10cm error allowed)

Model Name	Outline Size (mm)					Perforation Size (mm)		Tolerance (mm)
	W	H	D	M	N	φ1	φ2
AKH-0.66/K-φ10	27	40	26	24	36	10	9	±1
AKH-0.66/K-φ16	31	50	29	28	42	16	17
AKH-0.66/K-φ24	39	71	46	36	52	24	23.5
AKH-0.66/K-φ36	42.5	82	58	40	56	33.5	35
AKH-0.66/K-φ50	46.5	110	90	54	66.5	47	52

Installation method
Photo on site
Quotation

Shape	Type	Function	FOB Shanghai (USD)
Split Core CT	AKH-0.66/K-φ10	Measurement: Alternating Current (AC) Range of Primary Current: 5~60A Accuracy: Class 0.5 Perforation Diameter: φ10	5
Split Core CT	AKH-0.66/K-φ16	Measurement: Alternating Current (AC) Range of Primary Current: 20~100A Accuracy: Class 0.5 Perforation Diameter: φ16	7
Split Core CT	AKH-0.66/K-φ24	Measurement: Alternating Current (AC) Range of Primary Current: 60~400A Accuracy: Class 0.5 Perforation Diameter: φ24	11
Split Core CT	AKH-0.66/K-φ36	Measurement: Alternating Current (AC) Range of Primary Current: 100~600A Accuracy: Class 0.5 Perforation Diameter: φ36	17
Split Core CT	AKH-0.66/K-φ50	Measurement: Alternating Current (AC) Range of Primary Current: 600~800A Accuracy: Class 0.5 Perforation Diameter: φ50	27
