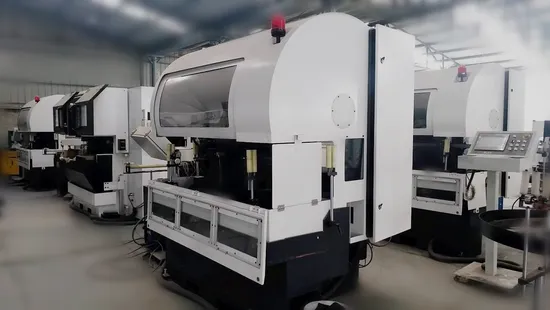

2021 Wood Cutting Saw Blade Sharpening Machine for Face Angle Grinding
| US$999.00-49,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
DF2A
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Grinding Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Length of Band Saw
4700-8000mm
Width of Band Saw
30~150mm
Side Angle
0°-6°
Round Angle
0°-5°
Grinding Precision
<0.015mm
Processing Efficiency
5-20
Wheel Linear Speed
25-35m/S
Power
4kw
Weight
1200kg
Voltage
AC 380V-50Hz/220V-60Hz
Item
Wood Cutting Saw Blade Sharpening
Function
Bandsaw Tooth Side Grinding
Transport Package
Water Proof + Wood Carton
Specification
1450*1300*1682
Trademark
TORSEL
Origin
China
HS Code
8460310000
Production Capacity
5000units/Year
Product Description
Wood cutting Saw Blade Grinding Machine for band Saw blade SharpeningHigh-level productivity & precision grinding machine for carbide tools.
• Sawblade Length: 3500-8000mm
• Function: Tooth side angle sharpening
• Precision: <0.015mm
• Model: DS2A
• High precision, more function & more productivity, PURCHASE is cost-effective.
• Cooperation Company
Advantages of sawblade grinding machine • More precision- grinding precision: <0.015mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding SIDE angle of sawblade
Presetting for tooth TOP/FACE/NOTCH grinding
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter
| Description | CNC Band Saw Blades Tooth Side Sharpener |
| Model | KDS150 |
| Length of Band Saw (mm) | 4700-8000 |
| Width of Band Saw (mm) | 30~150 |
| Side Angle (°) | 0-6 |
| Round Angle (°) | 0-5 |
| Precision(mm) | <0.015 |
| Grinding Type | End grinding |
| Wheel Diamention (mm) | 100*32*4 |
| Processing Efficiency (s/tip) | 5-20 |
| Wheel Linear Speed (m/s) | 25-35 |
| Application | Alloy band saw blades, frame saw blades & band saw blades with stellite tipped sharpening |
| Dimension (mm) | 1450*1300*1682 |
| Power (kw) | 4 |
| Weight (ton) | 1200 |
Configuration
| Ball Screw | THK (JAPAN) |
| Crossed Roller Guide | THK (JAPAN) |
| Pneumatic Parts | SMC(Japan) |
| Servo Motor | Inovance |
| PLC | Inovance ARM600 |
| Harmonic Drive | Inovance |
FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
