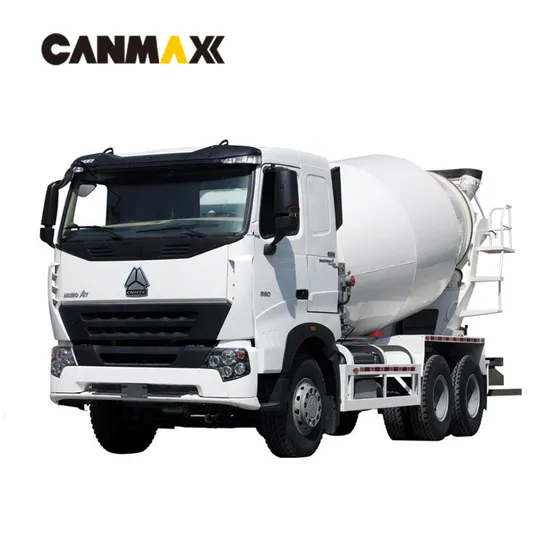

China Hino Sinotruck Shacman Sanyi Schwing Chassis 6m3 8m3 9m3 10m3 12m3 16m3 HOWO Cement Small Concrete Mixer Truck Machine Price for Sale

Product Description

Product Description
1.Efficial Mixing Technology
Large rise angle is designed at front cone to provide stronger mixing capacity and more uniform mixing, with a concrete slump change at all stages of ≤ 5%;Unique continuous trace design is used for transitional blade to ensure that mixing drum has no axial dead angle, with a lower residual rate of below 0.4%;SCHWING's large-bend arc-shaped blade design is used at rear cone to provide better concrete fluidity, with charging and discharging speed increased by 10%.
2.Tank Technology of Large Capacity and Low Angle
SCHWING's blade design of variable height is used for mixing drum, together with optimized guide pipe, to provide stronger material sealing capacity and higher filling rate, thus improving the loading capacity of the tank by 6%;Low dip angle is designed, with the angle 5% lower than that of its counterparts and the stability improved by 18% under equivalent loading capacity.
3.Comprehensive Improvement of Key Parts' Reliability
Optimized matching of drum body and blade steel plate realizes equivalent service life of mixing system;Feed hopper and chute are made of multilayer high-strength wear-resistant liner plate, with the service life increased by 50%.The combined design of two bent arc-shaped rear beams and triangle stayed beam structure is used for rear support to provide super-strong bearing capacity, with fatigue life increased by 30%, sturdy and durable;The adoption of hydraulic parts of famous brands and transmission shaft of long service life improves the system's reliability by once.
4.Application of Schwing's Advanced Manufacturing Technology
Special cutting, rolling and assembly equipments are used for the manufacturing of mixing drum to provide higher accuracy in form and position, better drum performance and higher overall stability.Domestically initiative cold pressing spring-back compensation technology is used for spiral blade to provide higher blade molding accuracy and more reliable quality.Structural parts adopt the painting technology of twice ball blasting + twice priming paint + twice finish paint, more durable.

Detailed Photos
Product Parameters

CATEGORY	ITEM	UNIT	XSC3307	XSC3309	XSC3311
Performance of mixing drum	Rev.	r/min	0~14	0~14	0~14
	Charging speed	m³/min	≥3	≥3	≥3
	Discharging speed	m³/min	≥2	≥2	≥2
	Residual ratio of discharging	%	<0.4%	<0.4%	<0.4%
Hydraulic system	Oil pump		World-famous brand
	Motor		World-famous brand
	Speed reducer		World-famous brand
Water supply	Volume of water tank	L	450	450	450
Overall vehicle	Chassis model		ZZ1257N3647E1	ZZ1257N4347E1	ZZ1257N4347E1
	Curb mass	Kg'	14600	15870	16170
	Drive type		6×4	6×4	6×4
	Wheel base	mm	3825+1350	4025+1350	4325+1350
	Tire		12.00R20	12.00R20	12.00R20
	PTO way		Flywheel
	Outline dimensions	mm	9405×2500×3980	9850×2500×3980	10470×2500×3995
Engine	Model		D10.34-50	D10.34-50	D10.34-50
	Rated power	kW	249	249	249
	Fuel		Diesel	Diesel	Diesel
	Emission standard		China V	China V	China V

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, ZF GEAR BOX, etc.
