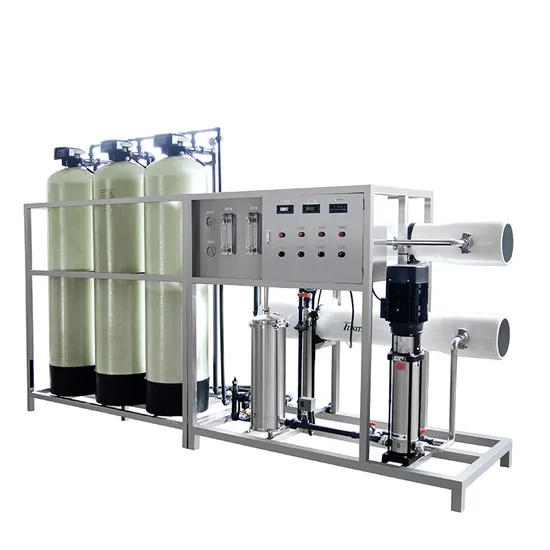

RO Water Treatment Pure Water Treatment

Product Description

RO/ Reverse Osmosis Machine Making Purification /Filter/Purifier /Treatment Plant for Preparation for Commercial/Industrial/Residential System Drinking Water
Product Description
Application of Industrial Reverse Osmosis Commercial Water filter Purification RO Water System Plant For Water Treatment RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
Optional Equipment of Industrial Reverse Osmosis System Commercial Water filter Purification RO Water System Plant For Water Treatment * Automatic Operating Programmable logic controller: UL/CE Approved * Smart Relay * Delayed start-up of high-pressure pump * Inlet Solenoid Valve * Low & High Feed Pressure Switch Controls * Supply & Delivery Pumps Controls * R/P Storage Tank Full Pump on/off * Silica quartz Pre-Filter w/auto-backwash valve Product Parameters 1.System can produce water continuously and high degree automation.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of ro system are imported USA DOW membranes.
4.Automatic switch on when low water level, and switch off when high water level.
5.System flushes RO membranes automatically, reducing membranes polluted speed.
6.Water shortage protection for multi-stage pump.
7.Product water conductivity meter can monitor water quality online continuously.
8.Low operation cost and long life span.

Structure of Industrial Reverse Osmosis Water Treatment:
1	* 5 Micron 20" Sediment Filter and Housing	8	* Permeate and Concentrate Flowmeters
2	* Thin Film Spiral Wound Elements	9	* Concentrate Recycle Flowmeter
3	* Stainless Steel Pressure Vessels	10	* TDS Monitor, Digital, Panel Mounted
4	* Low Pressure Switch	11	* Powder Coated Skid
5	* Automatic Feed Water Shut-Off	12	*Temperature Monitor
6	* High Pressure Pump	13	* Flow Control and Back-Pressure Regulator
7	* Liquid Filled Pressure Gauges (3) For Filter In/Out and System Pressure	14	* Auto System Operation with Level Controls
Size and weight for each mould Model Capacity(LPH) Membrane Quantity Size(L*W*H)(mm) Weight(Kg) SRO-300 1500GPD(300LPH) 4040*1 1550*900*1820 150 SRO-500 3000GPD (500LPH) 4040*2 1550*900*1820 250 SRO-1000 6000GPD(1000LPH) 4040*4 1980*900*1940 450 SRO-2000 2000LPH 4040*7 4800*700*2050 700 SRO3000 3000LPH 4040*10 6000*800*2200 800 SRO-5000 5000LPH 8040*4 7000*900*2400 1000 SRO-8000 8000LPH 8040*8 8000*1000*2700 1600 SRO-10000 10000LPH 8040*9 8200*1600*3000 2200 SRO-15000 15000LPH 8040*15 8600*1700*3100 2800 SRO-20000 20000LPH 8040*20 10000*1700*3200 3500 SRO-25000 25000LPH 8040*25 5000*1800*3300 4200 SRO30000 30000LPH 8040*30 7000*1900*3500 5000 SRO50000 50000LPH 8040*50 7000*2300*3800 8500 Home Use Pure Drinking Water Making Industrial Treatment RO System Filter Purification Plant Machine 1000L / H Reverse Osmosis *Concentrate Recycle Valve

Technical Parameters
PROJECT	Water Treatment System
Model		WT-1T	WT-2T	WT-3T	WT-4T	WT-5T	WT-6T	WT-8T	WT-10T
Raw Pump	Power(KW)	0.55	0.75	1.1	1.5	1.5	1.8	3.0	4.0
Quarz sand filter	Flow rate(M3/H)	2	4	6	8	10	10	12	18
	Tank size(MM)	Φ400 x1850x2	Φ400 x1850x2	Φ600 x2000x3	Φ800 x2100x3	Φ1000 x2900x3	Φ1000 x2900x3	Φ1200 x2900x3	Φ1600 x3100x3
	Quartz sand(kgs)	200	400	600	750	1000	1300	1600	2300
Activated carbon filter	Flow rate(M3/H)	2	4	6	8	10	10	12	18
	Tank size(MM)	Φ400 x1850x2	Φ400 x1850x2	Φ600 x2000x3	Φ800 x2100x3	Φ1000 x2900x3	Φ1000 x2900x3	Φ1200 x2900x3	Φ1600 x3100x3
	Activated carbon(kgs)	100	120	160	220	200	360	450	650
Precision filter	Flow rate(M3/H)	2	4	6	8	10	10	12	18
	PP size	5μ	5μ	5μ	5μ	5μ	5μ	5μ	5μ
Production of water (L/h )		1000	2000	3000	4000	5000	6000	8000	10000
Recovery rate		50%	50%	50%	50%	50%	60%	60%	60%
High pressure pump power (kw)		1.1	3.0	4.0	5.5	5.5	7.5	11.0	15.0
Membrane		SPA 8040	SPA 8040	SPA 8040	SPA 8040	SPA 8040	SPA 8040	SPA 8040	SPA 8040
