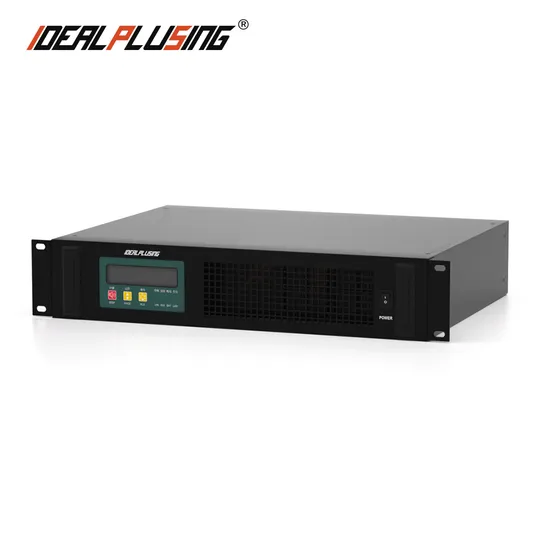

Factory Customized CE ISO Products 19 Inch 2u DC to AC Pure Sine Wave with RS485 Active off-Grid Car Power Inverter
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
IPS-DTA6000-48
Output Power
400-4800W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
DC Rate Input
48VDC
AC by Pass Input
220VAC
AC Output
220VAC
Frequency
50Hz or 60Hz
Mounting
19 Inch 2u Rack Type
Size
482*368*88(mm)
Nw
15kg
Transport Package
Carton Packaging
Specification
482*368*88(MM), 15KG
Trademark
IDEALPLUSING
Origin
China
HS Code
8504403090
Production Capacity
10000units/Year
Product Description
IPS-DTA6000-48 6000VA 48VDC to 220VAC Power Inverter Wave shape : Pure Sine Wave DC Rate Input : 48VDC Working voltage range: 40~58.8VDC Start up voltage range: 42~57VDC AC By Pass Input: 220VAC AC Output : 220V 50Hz or 60Hz Rate Capacity: 6000VA, 4800W Mounting : 19 inch 2U Rack Type Protection : input under voltage, over voltage output overload and short circuit Communication interface: RS485 *1 LCD indicator*1| Brand | IDEALPLUSING | |
| Model | IPS-DTA6000-48 | |
| Rate Capacity(KVA) | 6000VA | |
| Rate power(W) | 4800W | |
| DC Input | Rate input voltage | 48VDC |
| Rate input Current | 117A | |
| Shut down voltage range | 40~58.8VDC | |
| Start-up voltage range | 42~57VDC | |
| Reflect noise current | ≤10% | |
| AC Input | Allow bypass voltage | 220VAC |
| Bypass switch time (ms) | ≤5ms | |
| AC Output | Rated capacity (VA) | 6000VA |
| Rated output power (W) | 4800W | |
| output voltage | 220VAC | |
| Output voltage precision | 220±10VAC | |
| Output frequency precision | 50±0.1% Or 60±0.1% HZ | |
| Waveform | Pure sine wave | |
| Total harmonic distortion | ≤3% (linear load) (THD) | |
| Dynamic response time | 5% (load 0←→100%) | |
| Power factor (PF) | 0.8 | |
| Overload capacity | 100%-120% 60s121%-150% 10s | |
| Inversion efficiency (80% resistive load) | ≥85% | |
| By-pass conversion time (ms) | ≤5ms | |
| Operating environment | Dielectric strength (input and output) | 1500VAC, 1 minute |
| Noise (1m) | ≤65dB | |
| Operating environment temperature | -20ºC~+50ºC | |
| Humidity | 0~90%, no moisture condensation | |
| Operating altitude (m) | ≤2000 | |
| Indication | LCD display | Input and output voltage, frequency, output current, temperature, percentage, etc. |
| inverter status | Normal mains, normal inversion, battery under-voltage and output overload | |
| Mechanical size | Standard rack (Depth * Width * Height) (mm) | 482*368*88(MM), 15KG |
| Protection function | Input under-voltage and over-voltage, output overload and short circuit protections, etc. | |
| 19INCH RACK MOUNT TELECOM DC AC INVERTERS | |||||
| 24VDC INPUT, 110/120VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 0 | IPS-DTA500-24(1U) | 24VDC | 110/120VAC | 0.5KVA | 482*300*44 5KG |
| 1 | IPS-DTA1000-24(1U) | 24VDC | 110/120VAC | 1KVA | 482*300*44 5KG |
| 2 | IPS-DTA1000-24(2U) | 24VDC | 110/120VAC | 1KVA | 482*335*88 8KG |
| 3 | IPS-DTA2000-24(2U) | 24VDC | 110/120VAC | 2KVA | 482*368*88 13KG |
| 4 | IPS-DTA3000-24(2U) | 24VDC | 110/120VAC | 3KVA | 482*368*88 15KG |
| 5 | IPS-DTA4000-24(2U) | 24VDC | 110/120VAC | 4KVA | 482*440*177 25KG |
| 6 | IPS-DTA5000-24(2U) | 24VDC | 110/120VAC | 5KVA | 482*440*177 25KG |
| 24VDC INPUT, 220/230/240VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 9 | IPS-DTA500-24(1U) | 24VDC | 220/230VAC | 0.5KVA | 482*300*44 5KG |
| 10 | IPS-DTA500-24(2U) | 24VDC | 220/230VAC | 0.5KVA | 482*335*88 8KG |
| 11 | IPS-DTA1000-24(1U) | 24VDC | 220/230VAC | 1KVA | 482*300*44 5KG |
| 12 | IPS-DTA1000-24(2U) | 24VDC | 220/230VAC | 1KVA | 482*335*88 8KG |
| 13 | IPS-DTA2000-24(1U) | 24VDC | 220/230VAC | 2KVA | 482*300*44 5KG |
| 14 | IPS-DTA2000-24(2U) | 24VDC | 220/230VAC | 2KVA | 482*368*88 13KG |
| 15 | IPS-DTA3000-24(2U) | 24VDC | 220/230VAC | 3KVA | 482*368*88 15KG |
| 16 | IPS-DTA4000-24(2U) | 24VDC | 220/230VAC | 4KVA | 482*440*177 25KG |
| 17 | IPS-DTA5000-24(2U) | 24VDC | 220/230VAC | 5KVA | 482*440*177 27KG |
| 48VDC INPUT, 110/120VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 20 | IPS-DTA500-48(1U) | 48VDC | 110/120VAC | 0.5KVA | 482*300*44 5KG |
| 21 | IPS-DTA1000-48(1U) | 48VDC | 110/120VAC | 1KVA | 482*300*44 5KG |
| 22 | IPS-DTA1000-48(2U) | 48VDC | 110/120VAC | 1KVA | 482*335*88 8KG |
| 23 | IPS-DTA2000-48(2U) | 48VDC | 110/120VAC | 2KVA | 482*368*88 13KG |
| 24 | IPS-DTA3000-48(2U) | 48VDC | 110/120VAC | 3KVA | 482*368*88 15KG |
| 25 | IPS-DTA4000-48(2U) | 48VDC | 110/120VAC | 4KVA | 482*440*177 25KG |
| 26 | IPS-DTA5000-48(2U) | 48VDC | 110/120VAC | 5KVA | 482*440*177 27KG |
| 48VDC INPUT, 220/230/240VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 29 | IPS-DTA500-48(1U) | 48VDC | 220/230VAC | 0.5KVA | 482*300*44 5KG |
| 30 | IPS-DTA1000-48(1U) | 48VDC | 220/230VAC | 1KVA | 482*300*44 5KG |
| 31 | IPS-DTA1000-48(2U) | 48VDC | 220/230VAC | 1KVA | 482*335*88 8KG |
| 32 | IPS-DTA2000-48(1U) | 48VDC | 220/230VAC | 2KVA | 482*300*44 5KG |
| 33 | IPS-DTA2000-48(2U) | 48VDC | 220/230VAC | 2KVA | 482*368*88 10KG |
| 34 | IPS-DTA3000-48(1U) | 48VDC | 220/230VAC | 3KVA | 482*300*44 5KG |
| 35 | IPS-DTA3000-48(2U) | 48VDC | 220/230VAC | 3KVA | 482*368*88 10KG |
| 36 | IPS-DTA4000-48(2U) | 48VDC | 220/230VAC | 4KVA | 482*368*88 13KG |
| 37 | IPS-DTA5000-48(2U) | 48VDC | 220/230VAC | 5KVA | 482*368*88 14KG |
| 38 | IPS-DTA6000-48(2U) | 48VDC | 220/230VAC | 6KVA | 482*368*88 15KG |
| 39 | IPS-DTA8000-48(4U) | 48VDC | 220/230VAC | 8KVA | 482*440*177 25KG |
| 40 | IPS-DTA10000-48(4U) | 48VDC | 220/230VAC | 10KVA | 482*440*177 26KG |
| 110VDC INPUT, 110/120VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 43 | IPS-DTA500-110(1U) | 110VDC | 110/120VAC | 0.5KVA | 482*300*44 5KG |
| 44 | IPS-DTA1000-110(1U) | 110VDC | 110/120VAC | 1KVA | 482*300*44 5KG |
| 45 | IPS-DTA1000-110(2U) | 110VDC | 110/120VAC | 1KVA | 482*368*88 10KG |
| 46 | IPS-DTA2000-110(2U) | 110VDC | 110/120VAC | 2KVA | 482*368*88 13KG |
| 47 | IPS-DTA3000-110(2U) | 110VDC | 110/120VAC | 3KVA | 482*368*88 13KG |
| 48 | IPS-DTA4000-110(2U) | 110VDC | 110/120VAC | 4KVA | 482*440*177 25KG |
| 49 | IPS-DTA5000-110(2U) | 110VDC | 110/120VAC | 5KVA | 482*440*177 26KG |
| 50 | IPS-DTA6000-110(2U) | 110VDC | 110/120VAC | 6KVA | 482*440*177 26KG |
| 110VDC INPUT, 220/230/240VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 53 | IPS-DTA500-110(1U) | 110VDC | 220/230VAC | 0.5KVA | 482*300*44 5KG |
| 54 | IPS-DTA1000-110(1U) | 110VDC | 220/230VAC | 1KVA | 482*300*44 5KG |
| 55 | IPS-DTA1000-110(2U) | 110VDC | 220/230VAC | 1KVA | 482*335*88 8KG |
| 56 | IPS-DTA2000-110(1U) | 110VDC | 220/230VAC | 2KVA | 482*300*44 5KG |
| 57 | IPS-DTA2000-110(2U) | 110VDC | 220/230VAC | 2KVA | 482*368*88 10KG |
| 58 | IPS-DTA3000-110(1U) | 110VDC | 220/230VAC | 3KVA | 482*300*44 5KG |
| 59 | IPS-DTA3000-110(2U) | 110VDC | 220/230VAC | 3KVA | 482*368*88 10KG |
| 60 | IPS-DTA4000-110(2U) | 110VDC | 220/230VAC | 4KVA | 482*368*88 13KG |
| 61 | IPS-DTA5000-110(2U) | 110VDC | 220/230VAC | 5KVA | 482*368*88 14KG |
| 62 | IPS-DTA6000-110(2U) | 110VDC | 220/230VAC | 6KVA | 482*368*88 15KG |
| 63 | IPS-DTA8000-110(4U) | 110VDC | 220/230VAC | 8KVA | 482*440*177 24KG |
| 64 | IPS-DTA10000-110(4U) | 110VDC | 220/230VAC | 10KVA | 482*440*177 25KG |
| 65 | IPS-DTA12000-110(4U) | 110VDC | 220/230VAC | 12KVA | 482*440*177 27KG |
| 66 | IPS-DTA15000-110(4U) | 110VDC | 220/230VAC | 15KVA | 482*440*177 27KG |
| 220VDC INPUT, 110/120VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 69 | IPS-DTA500-220(1U) | 220VDC | 110/120VAC | 0.5KVA | 482*300*44 5KG |
| 70 | IPS-DTA1000-220(1U) | 220VDC | 110/120VAC | 1KVA | 482*300*44 5KG |
| 71 | IPS-DTA1000-220(2U) | 220VDC | 110/120VAC | 1KVA | 482*368*88 10KG |
| 72 | IPS-DTA2000-220(1U) | 220VDC | 110/120VAC | 2KVA | 482*368*88 13KG |
| 73 | IPS-DTA3000-220(2U) | 220VDC | 110/120VAC | 3KVA | 482*368*88 13KG |
| 74 | IPS-DTA4000-220(2U) | 220VDC | 110/120VAC | 4KVA | 482*440*177 25KG |
| 75 | IPS-DTA5000-220(2U) | 220VDC | 110/120VAC | 5KVA | 482*440*177 27KG |
| 220VDC INPUT, 220/230/240VAC OUTPUT POWER INVERTER | |||||
| NO | Model Name | Input Voltage VDC | Output Voltage VAC | Output Power KVA | Machine Size(MM) NW: KG |
| 78 | IPS-DTA500-220(1U) | 220VDC | 220/230VAC | 0.5KVA | 482*300*44 5KG |
| 79 | IPS-DTA1000-220(1U) | 220VDC | 220/230VAC | 1KVA | 482*300*44 5KG |
| 80 | IPS-DTA1000-220(2U) | 220VDC | 220/230VAC | 1KVA | 482*335*88 8KG |
| 81 | IPS-DTA2000-220(1U) | 220VDC | 220/230VAC | 2KVA | 482*300*44 5KG |
| 82 | IPS-DTA2000-220(2U) | 220VDC | 220/230VAC | 2KVA | 482*368*88 10KG |
| 83 | IPS-DTA3000-220(1U) | 220VDC | 220/230VAC | 3KVA | 482*300*44 5KG |
| 84 | IPS-DTA3000-220(2U) | 220VDC | 220/230VAC | 3KVA | 482*368*88 10KG |
| 85 | IPS-DTA4000-220(2U) | 220VDC | 220/230VAC | 4KVA | 482*368*88 13KG |
| 86 | IPS-DTA5000-220(2U) | 220VDC | 220/230VAC | 5KVA | 482*368*88 14KG |
| 87 | IPS-DTA6000-220(2U) | 220VDC | 220/230VAC | 6KVA | 482*368*88 15KG |
| 88 | IPS-DTA8000-220(4U) | 220VDC | 220/230VAC | 8KVA | 482*440*177 23KG |
| 89 | IPS-DTA10000-220(4U) | 220VDC | 220/230VAC | 10KVA | 482*440*177 27KG |
| 90 | IPS-DTA12000-220(4U) | 220VDC | 220/230VAC | 12KVA | 482*440*177 28KG |
| 91 | IPS-DTA15000-220(4U) | 220VDC | 220/230VAC | 15KVA | 482*440*177 30KG |
