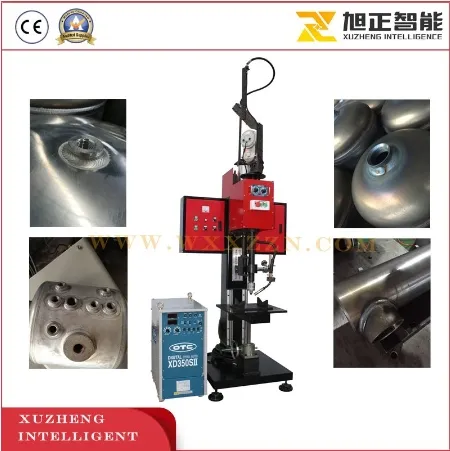

Stainless Steel Carbon Steel MIG TIG Oil Port Automatic Rotary Torch Welding Machine

Product Description

* Brief Introduction:
As regard the joint/nut/small pipe splice/water nut etc. welding, you choose the very suitable following machine. It adopts the way of the work-piece is stationary, the torch around the structural form of a 360-degree rotation.
TIG, MIG and MAG welding methods are all available on this welding machine. It is characterized by simple clamping of
the work-piece, the welding characteristics of high efficiency, simple operation.
Imported PLC control unit. Copying matched molds can be welded with unit and saddle shaped work-pieces. Widely used in automobile air reservoir, pumps, sports equipment,
valves, and other industries.
* Welding Results:
* Technical Data:

Automatic Gun-rotating Welding Machine
ITEM	XZZQH-300	XZZQH-1000	XZZPH-300
Input Power	220V 50HZ	380V 50HZ	220V 50HZ
Rated Power(KW)	14	14	14
Air Pressure Range(Mpa)	0.1~0.6	0.1~0.6	0.1~0.6
Work-piece Diameter(mm)	100~300	100~1000	50~500
Work-piece Length(mm)	30~1000	30~1000	20~500

* Our Factory Workshop:
* Advantages
1 It can control arc start and stop time precisely.
2 Programming is flexible according to products.
3 Arc striking position is precise.
4 Weld seam looks full and nice.
* FAQ:
Q: Do we have to change clamping mould for different work-pieces?
A: Yes, but it is very easy operation, please refer the instruction book for more details.
Q: What is the way of loading and unloading?
A: It is manual.
Q: Is discontinuous welding available?
A: Yes, some simple settings.
* Welcome to visit us!
