Sg Series Saddle Moving Type Grinding Machine

Product Description

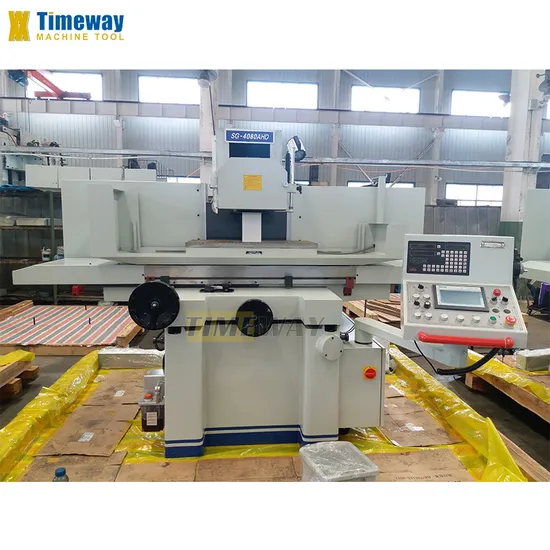

Saddle Moving type grinding machine
SG-4080AH;SG-4080AHR;SG-4080AHD Product Description

* SG series saddle moving surface grinder, the table
size covers 200x500, 250x500, 300x630, 300x1000,
400x800, 400x1000.
* Well designed perfect symmetrical structure insure
the machine is very suitable for precision grind.
Saddle makes cross movement driven by AC motor,
work table make reversing movement driven by
hydraulic, and spindle make elevating movement
and is driven by manual (AH series), AC motor (AHR
series), or AC servo motor (AHD series).
Product Parameters

Specification	Unit	SG-4080AH;SG-4080AHR;SG-4080AHD
Table size	mm	406x813
Electro magnetic chuck size	mm	400x800
Distance from spindle to table	mm	580
Table cross travel	mm	450
Table longitudinal travel	mm	910
Loading capacity (include chuck)	kg	500
Longitudinal feed speed	m/min	5-25
Table cross intermittent feed rate	mm/str	0.1-8
Table cross rapid feed speed	mm/min	990
Table cross feed of handwheel	mm/gra	0.02
Wheelhead vertical intermittent feed rate	mm/str	AH: -;AHR: -;AHD: 0.005-0.5;
Wheelhead vertical rapid feed speed	mm/min	AH: -;AHR: 650;AHD: 480;
Wheelhead vertical feed of handwheel	mm/gra	0.005
Spindle speed (50/60HZ)	rpm	1450/1750
Grinding wheel size	mm	350x40x127
Main motor power	kw	4
Machine dimensions (LxWxH)	cm	440x220x190
Package dimensions (LxWxH)	cm	295x222x221
Machine weight	kg	3200

*Standard accessories:
Working lamp, Balancing arbor, Standard grinding wheel, Magnetic chuck, Built-in magnetic chuck controller, Coolant tank, Wheel flange and extractor, Wheel dresser stand, Lubrication system, Tool box & tools, Leveling wedge and screw, Operation manual (English edition).
*Optional accessories:
Diamond pen, Balancing stand, 2 axis digital readout, Extra wheel flange, Rear splashing guard, Closed safe guard, Oil tank guard, Dust exhaust, Parallel wheel dresser, Radius dresser, Angle dresser, Side dresser, Sinusoidal magnetic table, Electronic handwheel, Magnetic separator, Paper filter.
