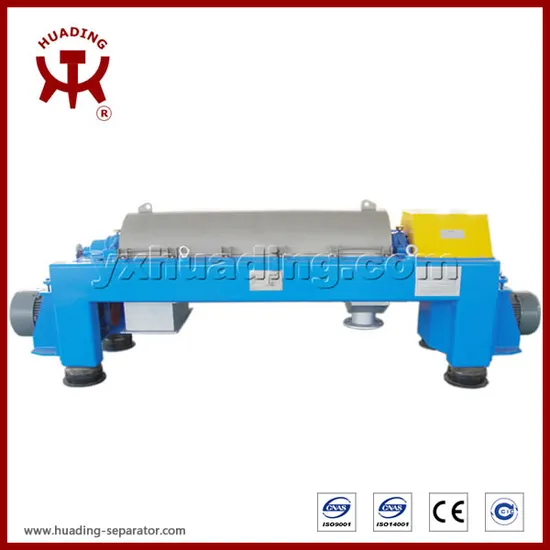

Lw400new Decanter Centrifuge for Fruit and Vegetable Juice Production

Product Description

LW SeriesLiquid-solid Two phase Separation

Specifications Decanter centrifuge with solid wall bowl,
- VFD driving
- Continuous operation
- Fully automatic control
- Low maintenance

Applications
This series juice decanter centrifuge from Huading Separator is a continuously operating horizontal solid wall centrifuge for fruit and vegetable juice industry. these juice decanter centrifuges specially designed to meet the whole stillage separation requirements for the fruit and vegetable juice industry.

Working principle


- 1. Feed
- 2. Liquid phase
- 3. Solids phase
- 4. Pond
- 5. Dry beach

The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity.


- 0. Food
- 1. Light liquid phase
- 2. Heavy liquid phase
- 3. Solids phase

The light liquid phase is discharged into the casing through radial holes in the large end hub. The heavy liquid phase is discharged through axial holes in the large end hub. The liquid radius for the light liquid phase is smaller than the radius for the heavy liquid phase. The liquid level is controlled by plate dams. In order to prevent the light liquid phase from leaving the bowl through the heavy liquid phase outlet, a separating plate is placed on the inside of the large end hub. The heavy liquid phase has to pass under the separating plate before being discharged into the casing. The liquid radius for the heavy liquid phase is controlled by plate dams. The solids are discharged in the normal way.


Features
All parts coming into contact with the product are made of stainless steel. 3-phase AC motor for controlled torque starting via frequency converter Bowl speed is adjustable via VFD to obtain the required G-force for optimized separation Pond depth in the bowl is adjustable for optimized balance between liquid clarity and solids dryness Conveying speed is adjustable for optimized balance between liquid Low personnel costs due to continuous and automatic operation. Highest g-force for higher solids output Automatic adjustment of differential speed via VFD Two motor drive Belts for both primary motor and secondary motor
Materials
The bowl, conveyor, inlet tube, outlets, cover and other parts in direct contact with the process media are all made of stainless steel. The discharge ports, conveyor flights and feed zone are protected with materials that are highly resistant to erosion. The frame is made of mild steel with an epoxy enamel finish.

Model	Bowl ID	Bowl speed	L/D	G force	Capacity(m3/h)	Solid removal(m3/h)	Primary motor	Weight	Dimension
LW400	400	3200-3900	3.0-4.8	2000-3500	5-30	2	18.5-30	2600	2950x1400x850
