100W 200W 300W 500W Q Pulse Fiber Laser Cleaning Machine for Mould Mold Cleaning

Product Description

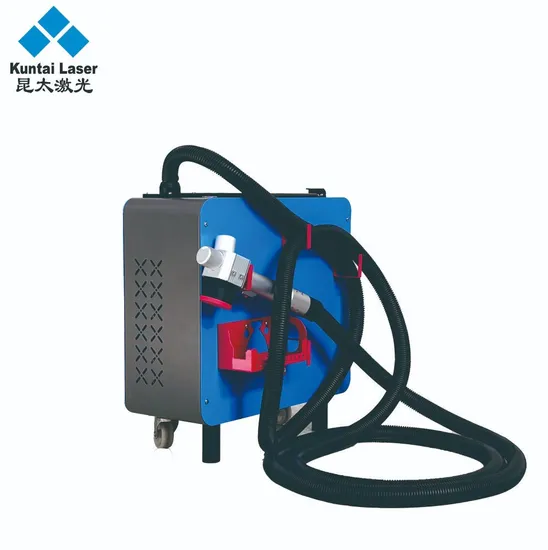

Handheld Flexible Fiber Laser Cleaning Machine
(for Rust Oil Grease Dust Oxidized Surface Cleaning and Removal)
OUR PRODUCT

MAIN PARAMETERS

WORKING CONDITION
Voltage	single phase AC 220V+-10%,50-60HZ
Total power	< 950W
Settlement environment	Flat surface place avoide vibration or impact
Working temperature	0-40 C
Working humidity	≤80%
MECHANICAL PARAMETER
Dimension	550mm×450mm×600mm
Weight	50KGS
Fiber cable length	standard 5 meters
Laser head/cleaning head weight	2KGS
Movable mode	push by hand
laser light scan width	10-100mm
OPTICAL PARAMETER
Average output power	≥200 W
Nonstable degree of output power	<3%
Power adjustment (%)	10-100 (gradual adjustment)
Focal spot diameter (mm)	0.1
Central wavelength (nm)	1064
Frequency (HZ)	10K-50K
Cooling system	air cooling
Working temperature	5 -40 Centigrade

ADVANTAGES COMPARISON

ITEM	LASER CLEANING	CHEMICAL CLEANING	MECHANICAL POLISH	DRY ICE CLEANING	ULTRASONIC CLEANING
Cleaning method	laser ( no contact )	chemical cleaning agent (contact)	mechanical/sand paper (contact)	CO2 dry ice(no contact)	cleaning agent (contact)
Workpiece damage	NO	YES	YES	NO	NO
Cleaning efficiency	HIGH	LOW	LOW	MEDIUM	MEDIUM
Consumable stuff	NO,only need electricity	chemical cleaning agent	sand paper, grinding wheel etc	CO2 dry ice	special cleaning agent
Cleaning effective	excellent (high cleanliness)	normal (non-uniform)	normal (non-uniform)	good (non-uniform)	excellent (but very tiny cleaning space)
Accuracy	precise control,high accuracy	non-control,low accuracy	non-control,normal accuracy	non-control,low accuracy	can not clean in special location
Safety/Pollution	NO pollution	envirnment pollution	envvirnment pollution	NO pollution	NO pollution
Operation	easy operate, manually/automatic	complex process	need too much labor cost	easy operate, manually/automatic	easy operate,but need to add consumables
Cost	high first investment to buy machine,but no consumables,low maintenance cost	low first investment,extremely high consumables cost	high first investment,high consumables cost,high labor cost	medium first investment,high consumable cost	low first investment,medium consumables cost

APPLICATION/LASER CLEANING SAMPLES
PACKAGING/SHIPPING

Product:laser cleaning machine
Each unit per plywood case
Gross weight: 150 KGS
Delivery: Winth 10 days after payment received (for standard machine)
Outer dimension:87X68X115CM
Shipping: by sea/by air/by express posting

WARRANTY/SERVICE
· 1.We supply the software which can assist the marking machine

· 2.Free design of fixtures as customers required and technical support.

· 3.We guarantee delivery time within 10 days

· 4.We can customize the marking machine as your request.Provide special marking solutions for you.

· 5.TWO years for laser source,one year for other spare parts
