Automatic Slitting and Rewinding for Paper and Film Rotary Die Cutting&Slitting Machine
| US$7,500.00-13,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JM320S
Imprinting Type
Rotary
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Plate
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products
Transport Package
Export Wooden Case Packing
Specification
1900mm(L) 1000mm(W) 1650mm (H)
Trademark
JIAMING
Origin
Zhejiang, Chain
Product Description
Feature: The machine is suitable for die cutting and slitting the blank selt adhesive labels. It can die cut,slit and rewind the products in one time. It can automatically count the length, stop upon reaching the set quantity.And its unwinding unit is automatically controlled and rectified through a photoelectric cell. The machine is characterized by compact construction,fast speed with high effective precise. Easy operation,stability performance and long term use . *This machine is used for blank labels Product Made from Machine:Teachnical Specifications:
| Max Web Width | 320mm |
| Max Unwinding Dia | 500mm |
| Max Rewinding Dia | 500mm |
| Min&Max die cutter repeat | 177-476mm |
| Max Die cutting Speed | 200m/min |
| Slitting Accuracy | ±0.10 |
| Max Slitting Speed | 200m/min |
| Voltage | 1P 220V 50HZ |
| Positioning Precission | 2.6kw |
| Overall Diameter(L×W×H) | 1900mm×1000mm×1650mm |
| Weight | 1150KG |

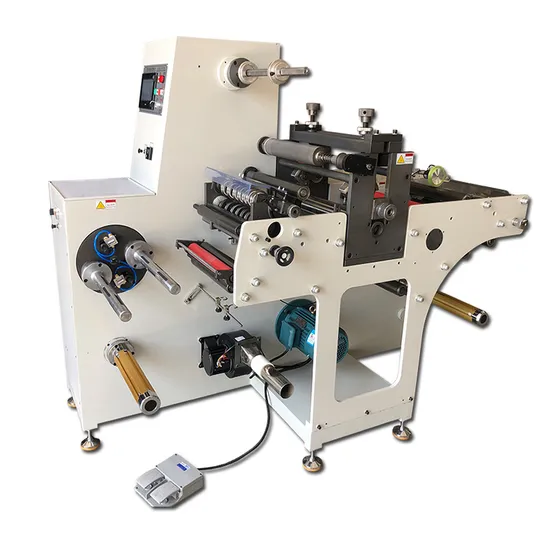

Machine Detailed Pic for Reference:
About us
Our company focus on researching and designing(R&D), quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our printing and packaging machines have been well accepted by customers from more than 20 countries.
Packing and Loading of Machine:
