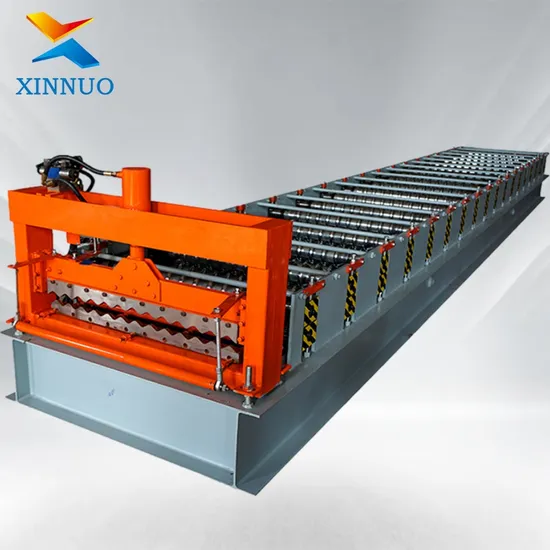

Xinnuo Lifetime Maintance Effctive Width 800mm Long Span Metal Corrugated Roofing Sheet Cold Roll Forming Machine

Product Description

Xinnuo 800 Roof Corrugated Forming Machine Lifetime Guaranteed

Product Description

We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.
Configurations: 5t manual uncoiler, forming machine, cutter, hydraulic system, controller, output table

No.	Main parameter of 800 Corrugated Galvanized Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1000 mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	9 rows
6	Diameter of the roller	70mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	4kw
9	Productivity	8-12m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting blade	Cr12
12	Hydraulic cutting power	3kw
13	Processing precision	Within 2.00mm
14	Control system	Delta PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 3.2 T
18	Dimensions	6.5*1.45*1.1m
19	Voltage	380V 50Hz 3phases

Detailed Photos


Our Advantages

ELECTRICAL CONTROL
All the control system of our machines we make by ourselves. we have a professional engineer to design and make the control system. This can make sure the after-sale service, when customer have problem with control, we can solve it timely.

MACHINING
This line, have high precious CNC grinders and milling machines, to make the rollers and shafts of the machine.After produce, have professional engineer to check if these are qualified.
From one roller to one machine, we do every step carefully to make sure the quality.



Company Profile

Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !
Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.
Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.
