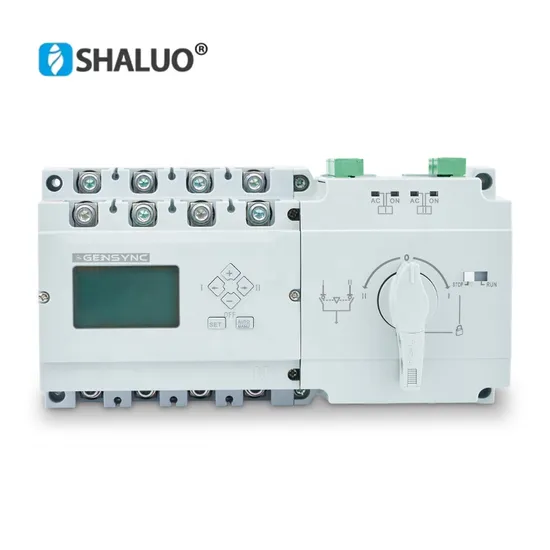

Generator ATS Controller Automatic Transfer Switch Panel 63A 100A 125A 250A 630A 1000A ATS SLS3-125b

Product Description

Product Description Generator ATS controller automatic transfer switch panel 63A 100A 125A 250A 630A 1000A ATS SLS3-125B This changeover switch is an microprocessor based PC class device designed to transfer loads automatically and manually from one power source to another in a wide variety of 1-3 phase applications. The unit monitors 3-phase normal and reserve source voltages, sends remote start command to the generating set and performs changeover switching between those 2 sources connecting the load circuits to a power source having voltage and frequency within preset limits. Device has a manual load switch lever, a manual/auto mode switch and a mechanical locking switch. Inputs and outputs: fire linkage control, generator remote start, external indicators. The front panel leds provide information about mains and generator power availability as well as a current switch position. The device display control panel shows device current state and source voltages and frequences and can be placed on the switch front side or in a distance of 1-3 meters from the device via standard Ethernet cable. Power source voltage/frequency limits, transfer/start/stop delays, generator exerciser schedule and transfer modes are front panel configurable. Note: The delays apply in case if the device is connected to 24VDC auxiliary power supply only. Features • High density silver-alloy contacts providing thousands operating cycles at 100% rated load; • Bridge type double break design not requiring special SCPD and matching AC-33B requirements; • Optimized magnetic blow-out arc extinquish system allowing to reach 10le capacity; • Multi-mode operation including manual transfer, automatic transfer with/without autorecovery and generator control under various configuration settings; • 3 working positions: main power ON - backup power OFF; main power OFF - backup power ON; main and backup power OFF; • Microprocessor controlled operations; • Reliable mechanical interlock and electric interlock; • "Zero Position" technology. Device can be set to Zero Position under emergency situations with two way power supply cut off meeting the fire fighting linkage requirements; • Singleness motor drive providing smooth, reliable, low noise operation; • Driving motor energized during switching operations only and having outstanding energy saving; • Mechanical interlock, making sure that the Normal power and Reserve Power sources work without interference; • Distinct ON and OFF positions and activity indicators; • Electromechanical integration design with accurate changeover adopting an advanced logical control technology and high anti-interference ability; • Easy installation using control circuit plug type terminal connections.
Detailed Images Why do you choose us Our Certifications Our Factory About the company Fu'an Shaluo Electronics co.Ltd is a manufacturer of generator accessories, Our company has established a long term and stable business relationship with a number of domestic agents and retailers.
Factory inspection The professional person responsible for the quality of supervision and control in the entire process.
Element testing In order to get the superior quality we only use selected good element.
Assembles products Aimed at enabling the production department to manufacture and assemble the product as efficiently as possible.
Payment & Delivery
