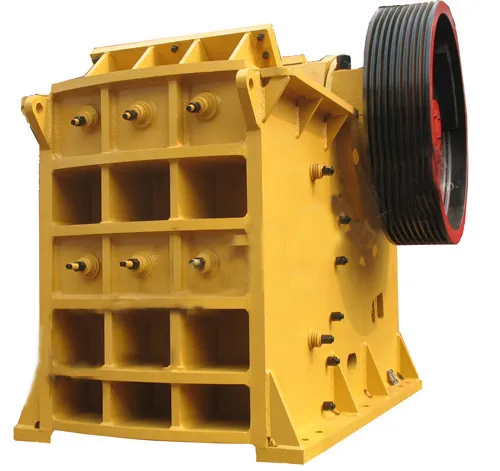

PE600X900 Jaw Crusher for 120t/Hr Gravel Stone Production Line

Product Description

PE600X900 Jaw Crusher for 120t/Hr Gravel Stone Production Line Jaw crusher Production capacity:1-500T/H Notice: this capacity is mean value and the specific production capacity is subject to clients'actual equipment configuration.
[Processable Material]:granite marble basalt iron ore cobble shale bluestone coal cobblestone construction material.
[Range of Application]:mining metallurgy constrction material highway railway water conservancy chemical engineering industry.PE jaw crusher is the major crushing equipment used as primary crusher in mining and quarrying industry. PE series jaw crusher is an economic and practical crushing equipment machine for our clients.
Jaw crusher structure:
Jaw crusher is mainly made of movable jaw plate, fixed jaw plate, side plate, flywheel, eccentric shaft and toggle plate, ect. The design offer owners the highest possible fatigue, excellent and numerous install ation possibilities. This combined with high-quality components, means indisputably high crusher availability, cost-efficient crushing and low cost per ton.
jaw crusher Working principle:
mineral crusher machine-Jaw crusher takes motor as the driving motive.The motor, through belt and flywheel, drives the eccentric shaft to rotate. The eccentric shaft will drive the movable jaw plate move at a regular track, closing and far away from the fixed jaw plate regularly. Therefore , the materials in the crushing cavity comprised of fixed jaw plate, movable jaw plate, and side plates can be crushed and then discharged from the discharge opening. The structure of jaw crusher contains the frame, eccentric shaft, big belt pulley, flywheel, movable jaw, side guard plate, toggle plate, rear seat of toggle plate, modulation gap screw, returning spring, fixed jaw plate and movable jaw plate, etc. among which the toggle plate is used for safety.
Main benefits of the PE jaw crusher :
1.Simple structure with reliable performance;
2.High reduction ratio with even final particles;
3.Easy to operate with low maintenance;
4.Flexibility with wide application.
Jaw crusher workshop :
jaw crusher specification :

model	Max feeding size (mm)	adjusting range of discharge opening (mm)	capacity (t/h)	spindle speed (r/min)	motor power (kw)
PE150X250	125	10-40	2-6	285	5.5
PE200X300	165	20-70	5-15	285	7.5
PE250X400	210	20-80	8-35	310	18.5
PE400X600	340	40-90	15-60	300	30
PE500X750	425	50-100	40-110	275	55
PE500X900	425	50-100	55-160	255	55
PE600X900	480	75-200	90-180	250	75
PE600X1200	480	75-200	100-360	250	75
PE750X1060	630	80-200	110-320	250	90
PE900X1200	750	100-200	220-450	250	110
PE1200X1500	1000	100-260	400-800	300	160
PEX150X500	125	10-40	8-18	300	11
PEX150X750	125	10-40	8-22	300	15
PEX250X750	210	10-50	15-35	300	22
PEX200X1000	160	10-55	11-36	300	22
PEX250X1000	210	15-55	16-50	300	30
PEX250X1200	210	15-60	18-60	300	37
PE1000X12000	850	195-265	312-430	200	200

Jaw crusher working site :
FAQ
if you are not sure which crusher you need,please go choosing tips to better meet your needs please provide the following information:
1.What kind of stone you want to crusher and maximum size of the feed stone?
2.maximum size of the discharge stone?
3.capacity(tons per hour)
4.Do you only need the crusher machine or the whole stone crushing line.
The jaw crusher will start delivery in 30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.
We promise that the jaw crusher will be shipped to you timely and safely.
Why choose us?
1We have special Machinery Research Institute
2Our product quality has been in line with international level
3Our products are exported to ninety countries and regions
4We are dedicated to providing best solutions and turnkey projects
5A variety of honor to witness, 100% professional
6We provide you with all-round, one stop services
