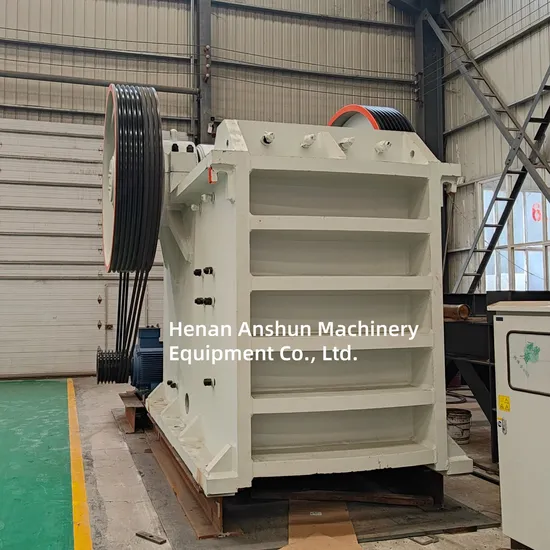

2025 Mining Crusher PE Series Jaw Crusher

Product Description

Product Introduction
PE jaw crusher is the most commonly used coarse crushing equipment in the two series of jaw crushers. This equipment adopts mature crushing technology, and its performance and structure adopt systematic and comprehensive optimization design. It has the characteristics of high strength, reliability and durability, large crushing force, and high production output. It is often used as a primary crusher in various stone production lines and ore crushing production lines.
Working Principle
The motor drives the belt and pulley to move the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw increases, thereby pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is squeezed to achieve the purpose of crushing. When the movable jaw moves downward, the angle between the toggle plate and the movable jaw decreases. Under the action of the pull rod and spring, the movable jaw plate leaves the fixed jaw plate, and the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the movable jaw of the crusher performs periodic movements to crush and discharge materials, realizing mass production.
Product advantagesProduct advantages
Stable and reliable performance
It is made of high-quality steel castings. At the same time, compared with other crushers of the same specifications, we use larger and more durable eccentric shaft bearings, which makes it have a higher load-bearing capacity and the equipment operation is more stable and reliable.
Good finished product particle shape
The PE jaw crusher adopts the principle of driven extrusion crushing, which significantly reduces the proportion of cubes in the product, reduces the content of needle-like products, and makes the particle size more uniform.
Long service life
It is made of high-hardness wear-resistant materials, which greatly enhances its compression resistance and wear resistance, and greatly extends the service life of the machine.
Simple structure and easy operation
After continuous optimization, the machine structure is also continuously upgraded and optimized, with a simple structure, easy operation, more convenient maintenance, and greatly shortened downtime and maintenance time.
Good dust prevention effect
It is equipped with a dust bag device. When dust enters the filter bag, the dust bag expands sharply in an instant, and shakes off the dust with the reverse action of the airflow.
Specifications and Performance Parameters

Model	Size of Feed Opening(mm)	Max.feed Size(mm)	Discharge Opening Adjustment Range(mm)	Processing Capacity(t/h)	Power(kw)	Overall Dimension L x W x H(mm)
PE400×600	400×600	350	40-90	15-60	30	1650×1588×1050
PE500×750	500×750	425	50-100	40-110	55	1956×1918×1920
PE600×900	600×900	500	60-125	90-180	75	2250×2733×2280
PE800×900	800×900	600	80-140	100-220	90	2450×2950×2490
PE750×1060	750×1060	630	60-150	110-380	110	2531×2455×2783
PE900×1060	900×1060	700	100-160	180-380	110	2900×2657×2950
PE900×1200	900×1200	750	110-165	220-450	110-132	3100×2760×3260
PE1000×1200	1000×1200	850	195-265	315-500	132-160	3480×2876×3330
PE1200×1500	1200×1500	1020	150-300	400-800	160-220	4200×3300×3500
PEX250×750	250×750	210	15-50	15-30	22-30	1400×1751×1515
PEX350×750	350×750	300	15-50	18-40	30	1485×1680×1648
PEX250×1000	250×1000	210	15-60	15-60	30	1550×1964×1380
PEX250×1200	250×1200	210	25-60	20-60	37-45	1530×1946×1380
PEX300×1300	300×1300	250	20-90	35-70	55-75	2000×2320×1730
PEX500×1500	500×1500	400	40-110	45-150	75	2850×2640×2100

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
