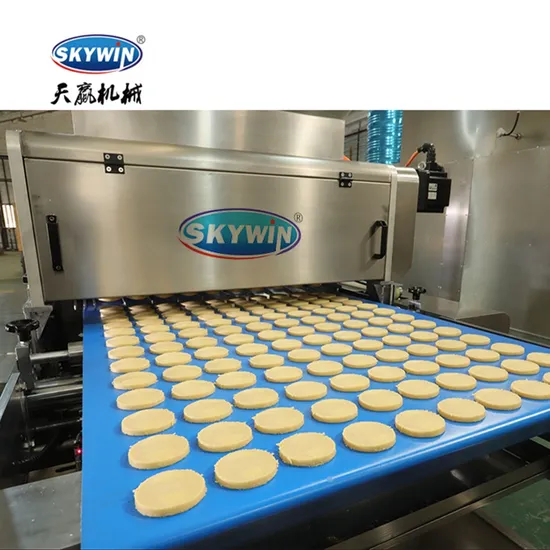

1200mm Cookie Production Line with Tunnel Oven Wire Cut and Deposit Cookie Making Machines

Product Description

Biscuits production line
Product Description
A whole production line consist of :

Horizontal Dough Mixer 1) Mixing speed : inverter control. 2) Capacity: 150-700 kgs. 3) Tub thickness : 5 mm and 8 mm. 4) Full 304 stainless steel. 5) SEW/Chinese Brand motor and gearbox. 6) Touch screen Siemens PLC control system.

Vertical Mixer 300 L 1) Mixing capacity: 14-17 bags flour, one bag 25 kgs flour, dough about 300 L/batch. 2) Mixing time 15-35 minutes/batch. 3) Mixing speed: revolutions speed 150 R/min. 4) 304 Stainless steel Bowl, thickness 5 mm.

Dough Tipping and Cutting Conveyor This system has included one small dough truck, automatic tipper, one dough cutting and transport machine, and soft dough conveyor belt.

Three-Roll Sheeter 1) Gauge roller 3 pcs 2) Food grade PU belt 3) Groove type feeding roller 4) Dough sheeting thickness can be adjust 5) Safety cover on top of Gauge roll

BCD gauge roller This equipment is necessary for making hard biscuits. Its function is to press the sheet of dough continuously until the dough has reached the desired thickness.

Rotary Cutter Rotary cutter is forming machine for hard and cracker biscuit. Rotary Moulder Rotary moulder is used in making soft biscuit.

Bakery oven Ovens divided into: electric ovens , gas ovens , diesel ovens (optional)

Stacker Stackers divided into: star wheel stackers / discrepancy speed stackers (optional) Cooling conveyor Natural air cooling by PU conveyor belt, PU belt thickness 1 mm GUOMAO brand , bevel wheel with high drive efficiency, low noise and work stability and so on.

* The video and pictures are for reference only
Product Parameters

The biscuit line consist of:
Item No.	Item
1	Horizontal Dough Mixer or (Vertical Dough Mixer),100-500kgs/batch
2	Dough feeding system, included small dough truck
3	Automatic Dough tipper
4	Dough cutting&transport machine
5	Three-roll combination sheeter
	Gauge rolls 3sets
6	Horizontal Laminator/Vertical Laminator
7	Rotary Cutter for Hard biscuit forming machines, can be installed stick biscuit forming machine, printing biscuit machine(to make print biscuit), filling biscuit machine(after oven to fill chocolate inside of biscuit)
	Rotary moulder for soft biscuit forming
8	Salt/sugar sprinkler
9	Tunnel oven (electric, indirect gas fried or hybrid gas oven for option) length is depend on capacity
10	Oil sprayer
11	90/180degree Curve
12	Cooling conveyor
13	Stacker(start wheel stacker or penny stacker)
14	Packing table
15	Separate machine and recycle device
Additional equipments:	1. Biscuit sandwiching machine, 2. Biscuit Sandwiching Machine connected Flow packaging machine; 3. Automatic Biscuit/ Cookies Production Line

Packaging & Shipping
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall). Company Profile
Skywin Foodstuff Machinery Co., Ltd. was established in 1983 and is a manufacturer specialized in the fully automatic high quality Biscuit Production Lines and Cookie Production Lines. We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. All operation is fully automatic PLC controlled. We will supply professional consulting services for machines used in the industry of biscuit production, as well as the most suitable design proposals and quality machines.
Perfect Solution of Biscuit Production & One-stop Procurement Service:
Biscuit production lines; Biscuit sandwiching and automatic connection packaging machines; Biscuit coating chocolate machines; Biscuit packing solutions; Cookies production lines ; Wafer biscuit production lines.
Proposal Design:
The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency.
Technzical Support:
Provide the technical support according to the customers' requirement.
Erection & Commissioning: Our processional technicians, quick responses and optimum service attitude can help finish the
installation in a short time.
After-sales service:
Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits.
Selecting & Purchasing:
According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance - price ratio will be supplied to customers.
