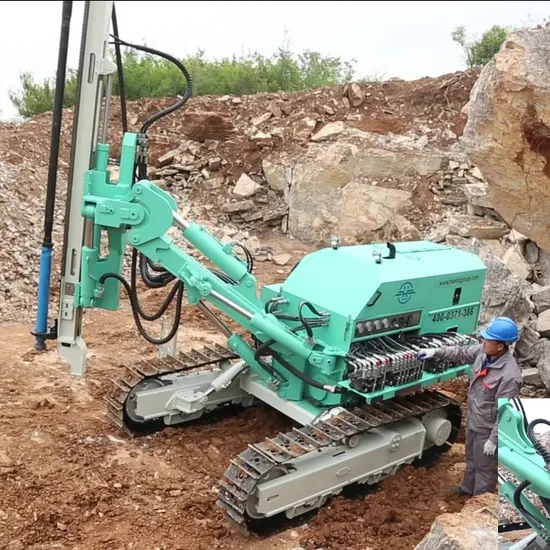

Mobile Hydraulic Crawler Mine Hard Rock Separated DTH Small Bore Hole Drilling Machine
| US$15,000.00-40,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HFQ65
Certification
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Drill Hole Diameter
115-150mm
Drill Hole Depth
62m
Bit Type
Diamond Bit
Drilling Way
Rotary
Type
DTH Drilling Rig
Wind Pressure
1.2-2.46MPa
Air Consumption
10-20m3/Min
Once Promotion
3000mm
Rotation Speed Distance
0-126/Min
Power Type
Diesel
Drill Diameter
76mm
Chassis Ground Clearance
300mm
Travelling Speed
0-2.5km/H
Rotary Torque
3100nm
Host Power
56kw
Drilling Depth
62m
Transport Package
Standard Export Package
Specification
CE, ISO
Trademark
HANFA
Origin
Zhengzhou City, China
HS Code
843041
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
3600.00cm * 1300.00cm * 1700.00cm
Package Gross Weight
3600.000kg
Product Description
Product Parameters
| Wind pressure(Mpa) | 1.2-2.46 |
| Air consumption(m³/min) | 10--20 |
| Drilling diameter(mm) | 115---150 |
| Drilling depth(m) | down 62m |
| Once promotion distance(mm) | 3000 |
| Drill diameter(mm) | 76 |
| Skid compensation(mm) | 1200 |
| Maximum lift force(N) | 26000 |
| Guide shell pitch (°) | up and down total 100 |
| Guide shell swing angle(°) | Left and right total 100 |
| Boom lift angle(°) | up and down total 70 |
| Boom swing angle(°) | 70 |
| Grade ability(°) | 30 |
| Chassis ground clearance(mm) | 300 |
| Travelling speed(Km/h) | 0-2.5 |
| Back to the transit speed(r/min) | 0--90 |
| Rotary torque(N.m) | 3200 |
| Host Power(kw) | 56 |
FAQ 1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
