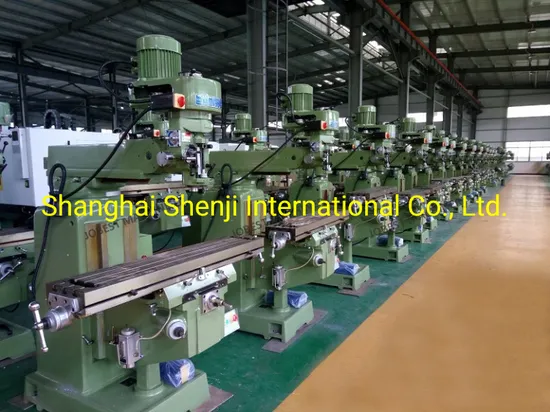

X6330A Universal Metal Variable Speed Milling Machine
| US$2,500.00-4,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
X6330A
Object
Matel
Structure
Turret
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
305X1500mm
Transport Package
Wooden Case
Specification
1600x1750x2200mm
Trademark
SJMC
Origin
China
Production Capacity
20untis/Month
Product Description
X6330A Turret Milling MachineMilling Machine main performance characteristics:
Main features:
1.High rigidityand quality casting iron, and saddle guide-way is coated by TF-material.
2.Variable speed milling head made in Taiwan, step speed milling head and inverter millinghead can be equipped as optional accessories.
3.X/Y/Z-axisscrew are made in Taiwan with good smooth and reliable features.
4.Table surfaceis treated specially to harden HRC45-55.
5.X/Y/Z-axisguide way surface are treated specially to harden HRC45-55.
6.Standardelectrical box with domestic brand electronics components, we also can selectoptional SIEMENS and SCHNEIDER brand.
5HP milling head from Taiwan
Leadscrew from Taiwan SHIYMIN
Guideway with Tuicite B cover
ISO40 spindle
Spindle bearing with P4 class
| Model | unit | X6330 | X6330A | |
| Worktable size | mm | 305*1370(12*54) | 305*1500(12*60) | |
| Worktable longitudinal trabel | mm | 870 | 1000 | |
| Worktable cross travel | mm | 380 | ||
| Worktable vertical travel | mm | 430 | ||
| T- slot No. and size | | 3*16 | ||
| Ram travle | mm | 500 | ||
| Distance from spindle nose to table surface | mm | 0-350 | ||
| Spindle hole taper | | Standard:ISO40 | ||
| Spindle travel | mm | 127 | ||
| Spindle speed | mm/min | Standard: Step speed 16 steps: 50HZ 65-4500,60HZ 80-3750 | ||
| Optional:Stepless:65-3750 | ||||
| Auto. Quill feed | mm | 3 steps:0.04(0.0015)/0.08(0.003)/0.15(0.006) | ||
| Spindle motor | | 3.75kw/5hp | ||
| Head swivel | | 90° | ||
| Head tilting | | 45° | Fixed type | |
| Packing dimension | One miller per case | mm | 1566*1650*2080 | |
| Two miller per case | mm | 1720*1800*2175 | ||
| three miller per case | mm | 1650*2285*2235 | ||
| G.W/SET | kgs | 1700 | 1750 | |
Specifications:
| Item / Model | Unit | X6333 | X6333A |
| Table size | mm | 330×1370(13×54") 330×1500(13×58") | |
| T-slot Nu.& size | 3 × 16 | ||
| Table longitudinal travel | mm | 820(1000) | |
| Cross travel | mm | 380 | |
| Knee vertical travel | mm | 460 | |
| Distance from spindle to table | mm | 0-450 | |
| Ram travel | mm | 500 | |
| Spindle taper | ISO40 | ||
| Quill travel | mm | 127 | |
| Spindle peed | r/min | 50HZ:65-4500 60HZ:80-5440 | |
| (optional variable):60-3600 | |||
| Quill feed rate | mm/rev | 0.04/0.08/0.15 | |
| motor power | kw | 3.7 | |
| Head swivel (Right / Left) | degree | -90/+90 | |
| Head swivel (up / down) | degree | -45/+45 | (Fixed) |
| Packing size | mm | 1set/pallet 1800×2020×2200 | |
| 2set/pallet 1800×2200×2200 | |||
| G.W. | kg | 2200 | 2250 |
