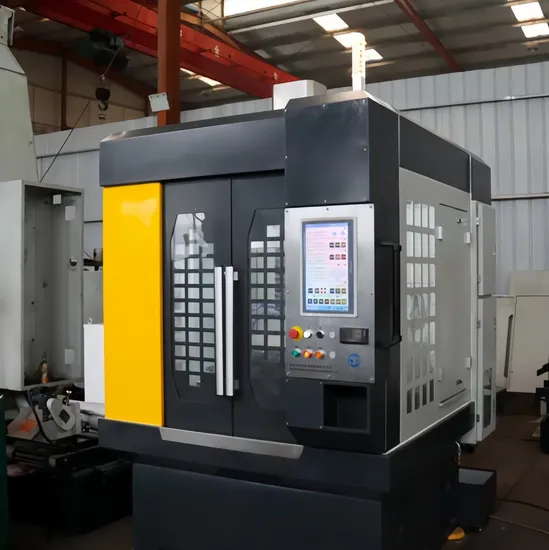

China Manufacturer CNC Vertical Honing Machine for Cylinder Block with Max. Dia: 60mm

Product Description

Product Description
Processed Objects
CNC honing machine Application scenario

Parts with honing patterns must be processed using honing machines, such as automotive cylinder blocks and liners, motorcycle cylinder blocks, etc. The cross mesh pattern after honing can store oil and form a layer of oil film, which plays an extremely important role in engine operation.

product features
1. Machine body adopts high strength cast iron castings, casting two times after aging treatment.
2.The rotation of the spindle, reciprocating, collapsible feeding adopts servo motor control, ensure the precise control of position, speed, torque.
3. Can process the precise net, also can meet the special requirements such as blind hole honing, etc
4. According to the set angle and spindle speed to control the stroke speed, enabling precise texture processing.
5. Feed servo motor and ball screw, can accurately realize micro feeding, easy control of workpiece dimension achieve micron level.
6. High-performance motion controller based on the development of accurate and reliable honing proprietary systems, visualization, human-machine interface, easy to operate.
7. Coolant through multi-stage filtration to ensure the stability and precision machining accuracy of parts.

Main Components

Product Parameters

Items	SHM06S	SHM10S
Honing diameter	Φ10mm-Φ60mm	Φ10mm-Φ100mm
Max. stroke	350mm	350mm
Max. honing depth	250mm	250mm
Distance between spindle center and column	290mm	290mm
Spindle power	3.7kw	5kw
Spindle speed	10-2000rpm	10-2000rpm
Stroke speed	2.5-25m/min	2.5-25m/min
Max. feed travel	30mm	30mm
Min feed rate	0.0005mm	0.0005mm
Cooling pump flow rate	25L/min	25L/min
Cooling box volume	100L	100L
Working noise	<75db	<75db
Total power	15kva	25kva
Machine weight	3000kg	4500kg
Overall dimension	1470×1200×2620mm	1470×1550×2950mm

Detailed Photos

Work Piece
