ASTM D1122 Density of Engine Coolants Tester

Product Details

Product Description

Product Description

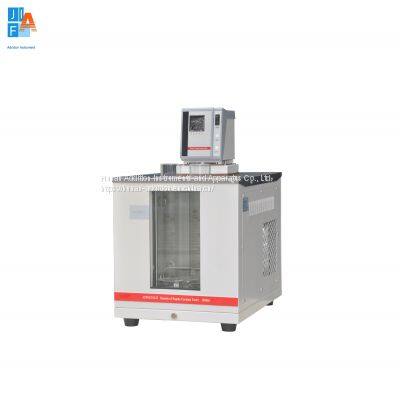

Density of Engine Coolants Tester ASTM D1122
Product model: JF0068
Product Introduction
The instrument is developed in combination with the national standards and the standards of the American Association for Testing Materials. It uses a density meter to measure the density or relative density of engine coolant and its concentrate. The instrument adopts a split structure, which is easy to operate and greatly improves work efficiency.
Technical Parameter
1. Applicable standard: ASTM D1122 SH/T0068
2. Digital temperature control: 20℃±0.2℃
3. Refrigeration method: compressor refrigeration
4. Heating method: electric heating tube heating
5. Stirring method: motor stirring
6. Sampling unit: double hole
7. Working power supply: AC220V/50Hz
8. Power of the whole machine: 1600W
9. Instrument size: 370*520*630mm
10. Net weight: 36KG

Performance Characteristics
1. The glass cylinder is transparent for observation, easy to operate;
2. Fully enclosed compressor refrigeration;
3. The cooling medium is circulated by a noiseless circulating pump;
4. Stainless steel electric heater;
5. Split structure, easy to move;
6. There is a hole for adding refrigeration medium above the cold bath, if the medium is lost, it can be added at any time;
7. Omron PID thermostat, digital display temperature, accuracy 0.1℃
8. Overheating safety protection (with a low water level alarm in the water bath) with an automatic water level regulator in the water bath;
9. It is very convenient to contact the control box;
