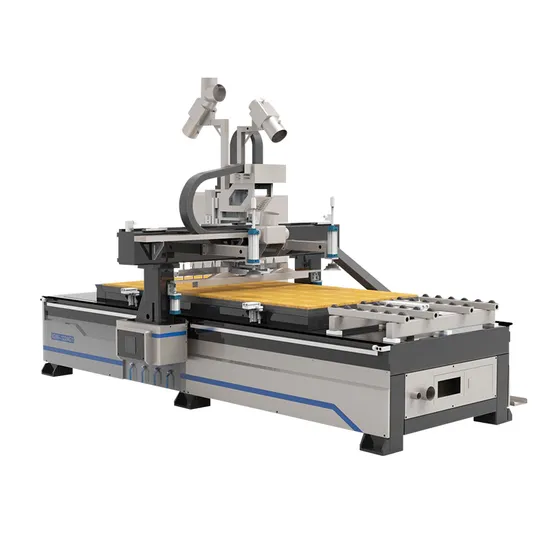

Wood CNC Router Machine Price for Woodworking Panel Furniture Cabinet Making CNC Router 2030 Nesting Machine

Product Description

Wood CNC Router machine price for Woodworking Panel Furniture Cabinet Making CNC Router 2030 Nesting Machine
Product Description Machine Features
A. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
B. Three axes adopt Taiwan HIWIN linear guide rail with high precision. Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.
C. Yaskawa servo system and reducer to make sure speed and stability. YASKAWA servo motors runs smoothly, no vibration phenomenon even in low speed and has overload ability,servo is more reliable and better than stepper.
D. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
E. Well compatibility: CAD/CAM designing software, such as type3/ucancam/artcam, etc.
F. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
G: Manual/automatic oil-injection system allows the machine maintenance mush easier.
Parameters

Model	1325 atc wood router
Spindle	9kw ATC air cooling spindle
Working table	Vacuum & T-slot table
Transmission mode	Z axis Taiwan TBI screw
Dynamic system	Servo motor
Inverter	Fuling/Delta Brand
Control system	Taiwan LCN/Syntec
Filter	Prevent electromagnetic interference
Working area	1300*2500*200mm
Max working speed	25m/min
Max velocity	50m/min
Spindle speed	0-18000rmp
Working voltage	AC220/380V
Interface	USB
Command language	G code
Software environment	Type3/Artcut/Artcam/Ucancam
Running environment	Temperature:0-45°C

Applicable Industries
♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.
♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
Service & Feedback
Company Information Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
