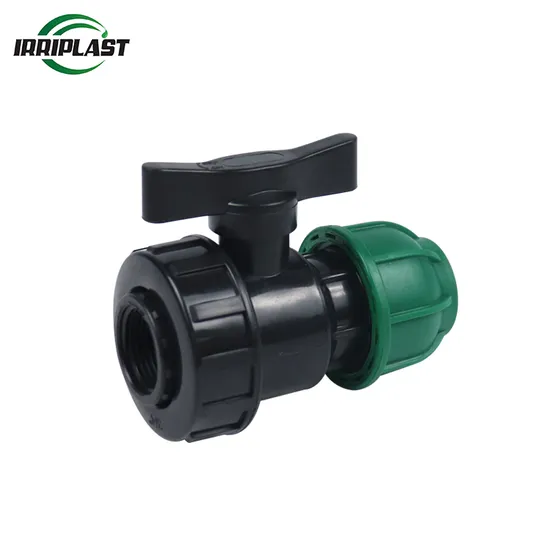

PP Single Female Union Ball Valve F for Irrigation Water Supply PP Compression Fitting

Product Description

PP Single Female Union Ball Valve F for Irrigation Water Supply PP Compression Fitting Product Description
PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.
Brand Irriplast was focused on the HDPE PE PP ball valve and compression fittings for irrigation .
Technical data

Part	Material
Body(A)	(PPB)Ploypropylene(PP-B)of exceptional mechanical properties even at high temperature
Blocking bush(B)	Ploypropylene(PPB)
Nut(C)	(PPB)Ploypropylene with dye master of high stability to UV rays and solidity to heat
Clinching ring(D)	(POM)Polyacetal resin(POM) of high mechanical resistance and hardness
O ring gasket(E)	Acrylonitrile elastomeric Rubber(NBR)
Handle(F)	Ploypropylene(PPB)
Ball(G)	Ploypropylene(PPB)
Seal ring(H)	Thermoplastic Elastomer(TPE)
O-ring carrier(l)	Ploypropylene(PPB)
Union(J)	Ploypropylene(PPB)
Ball stem(K)	Polyacetal resin(POM) of high mechanical resistance and hardness

Description	Code	Size	Weight (g/pc)	PCS/CTN
PP ball valve	9002	20x1/2"	86	210
		25x3/4"	140	126
		32x1"	205	88
		40x 1 1/4"	274	60
		50x1-1/2"	473	36
		63x2"	801	19

FEATURES
1) Light weight, easy to load and unload
2) Good chemicals and drugs resistance
3) Small resistance to fluidity
4) Strong mechanical strength
5) Good electrical insulation
6) Water quality unaffected
7) Simple installation
APPLICATION
1) Structure Engineering
2) Water supply system
3) for Agriculture Irrigation Main Products
