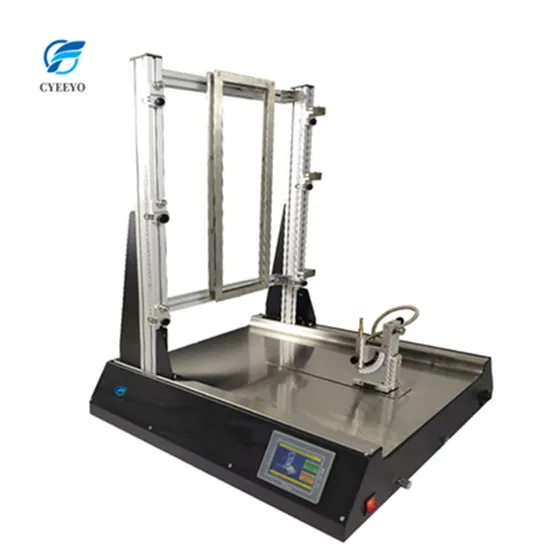

ISO 15025 Textile Burning Flame Retardant Tester Fabric Vertical Flammability Chamber

Product Description

ISO 6940 Textile Burning Flame Retardant Tester Fabric Vertical Flammability Chamber
Vertical Fabric Flammability Tester is automatically determine the flammability resistance to a vertical flame of apparel fabrics, protective fabrics, curtains and children's sleepwear.
Test Standard: ISO 6940 / 6941/ ISO 15025/ EN 1101 / 1102 /BS 5867/ECE R188 Annex 8
Features: This test instrument has undergone a new model upgrade, compact design, optimized product shape, transmission structure and test structure.

The case is made with advanced CNC laser cutting and CNC bending forming process, with precise coordination and tight fit.

The surface of the cabinet is treated with electrostatic powder spraying paint process, the paint surface is firm and durable. Aluminum profile fixture side frame, black and white color matching, simple and generous.

Clamps made of high-quality SUS304 stainless steel, with wire-drawing surface treatment, beautiful and durable, easy to clean.

Synchronous wheel drive, coordinated with the guide rod, the operation is stable and reliable, non-contact proximity switch limit, simple structure, stable stroke, smoother and quieter operation.

The igniter can be rotated from 0° to 90°, which is convenient for flame height measurement and standard angle test.

The height, left and right positions of the igniter can be adjusted to meet the position requirements of different samples and different tests.

Standard size sample fixtures can be directly hung on different hanging rods of the instrument side frame for testing
Technical Parameter:

Ignition time set range	0-99.9s
Flame timing range	0-999.9s
Ignition fire mouth	according to ISO6941 Standard
Fire Mouth angle	0°-90°Adjustable
Flame Measurement Height	20mm/40mm
Mark Line Position	Adjustable
Gas	Butane
Dimension	830mmX600mmX900mm
Weight	About 40kgs
