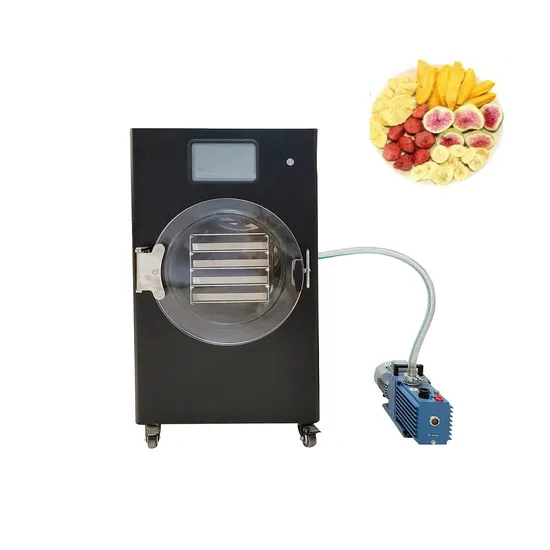

Vacuum Freeze Dryer 1-12kg Lyophilizer Chemical Food Fruit Meat Drying Equipment

Product Description

Freeze-drying (hereinafter referred to as lyophilization) is a method in which an aqueous substance is first frozen into a solid state, and then the water therein is sublimated from a solid state into a gaseous state to remove water and preserve the substance.
In the field of biotechnology products, freeze-drying technology is mainly used for the production of drugs such as serum, plasma, vaccines, enzymes, antibiotics, hormones; biochemical inspection drugs, immunology, and bacteriology; drugs; blood, bacteria, arteries, bones Long-term preservation of skin, cornea, nerve tissue and various organs.
Product Features:
* Many heat-sensitive substances do not degenerate or inactivate.
* When drying at low temperatures, some of the volatile components in the material are lost.
* During the lyophilization process, the growth of microorganisms and the action of enzymes cannot be carried out, so that the original traits can be maintained.
* Since it is dried in a frozen state, the volume is almost constant, and the original structure is maintained, and concentration does not occur.
* The dried material is porous and spongy. After adding water, it dissolves quickly and completely, and almost immediately restores its original character.
* Since drying is carried out under a vacuum, there is very little oxygen, so some easily oxidizable substances are protected.
* Drying can remove 95%~99% of water so that the products can be preserved for a long time without deterioration.
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.

Model	HFD-1	HFD-4	HFD-6	HFD-8	HFD-15
Freeze-drying area	0.1m2	0.4m2	0.6m2	0.92m2	1.45m2
Cold trap temperature	-50ºC
Vacuum degree	2PA
Processing capacity(Kg)	1-2kg/batch	4-6kg/batch	6-8kg/batch	10-12kg/batch	18-20kg/batch
Material tray size(W*L)	145*275mm	200*425mm	315*430mm	265*430mm	265*780mm
Board layer spacing(mm)	43	45	70	38	43mm
Cooling method	Air cooling
Pumping rate	2-4L/S
Hydration capacity	3kg/24h	4kg/24h	6kg/24h	10kg/24h	18kg/24h
Power supply	220V 50 HZ / 110V 60 HZ
Power	1100W	1500W	2000W	2500W	3500W
Overall dimension(mm)	670*600*780	500*640*900	640*680*1200	640*680*1200	680*990*1180mm
Packing size(mm)	750*630*1120	840*630*1260	820*800*1540	820*800*1540	820*1170*1600mm
N.W/G.W(KG)	50/127	84/139	125/197	130/210	186/281

Our Services
Pre-sale Service:
--24 Hours online service for your consult.
--Help choose right model, and a series of services, person, and advice.
--Give you the best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convenient.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
After-sale service:
--1 year warranty service and all life maintenance.
--Technical Engineers are available for oversea training.
--Remote control technical consult.
--Free installation DVD.
--Maintenance plan.
Every Freeze Dryer has been designed, engineered, and tested in our manufacturing facility in Shanghai City, China. We spent four years extensively creating this product to roll out to the world. We are committed to making great appliances. So, when you choose to purchase a LEMON MECH Freeze Dryer, you're not only getting an innovative appliance that is built to last, you're also investing in a product that you can trust to preserve the foods you and your family love for years to come.
