Plastic Chemical Barrel Bottle Open Top Drum Blowing Machine Blow Molding Machine

Product Description

Product Description

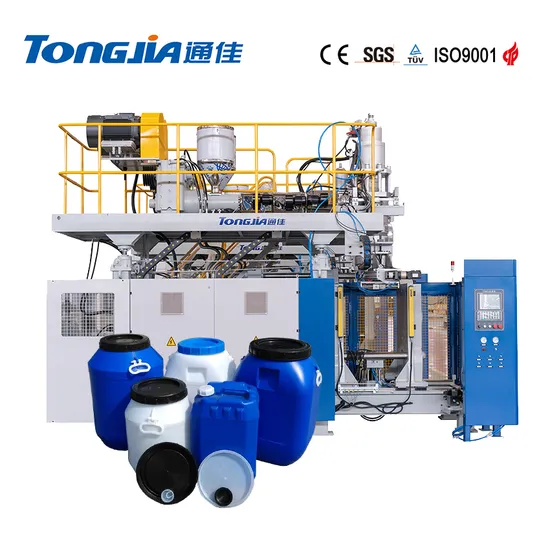

Plastic jerry can blowing machine production
Tongjia TJ-HB30L-100L series hollow blow molding machine is mainly composed of frame, plasticization system, die
head, mold opening and closing mechanism, lifting device, hydraulic system, pneumatic system, cooling system, electrical
control system, etc.
This series of blow molding machine adopts international leading configuration, and is specialized in producing various
chemical plastic barrels, medical packaging, child safety seats, transportation facilities and tool bags, etc., to meet customer
needs for hollow products of 30-100L with different specifications.

Configuration
Clampingsystem	Fixed clamping system
Injection system	Hardeoed face gear redocer + lmponed freqooncy inverter
Die system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve +hydraulic servo control system
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )

Parameters
Specifications	Units	TJ-HB30L	TJ-HB60L	TJ-HB100L
Max. product capacity	L	30	60	100
Machine dimension	m	4.85x3.5x3.7	4.9x3.5x4.0	5.7x3.9x4.5
Machine weight	Ton	10	12	16
Clamping Unit
Mold platen size	mm	780x700	885x750	1060x1060
Power
Total power consumption	KW	86	108	140
Avenrage power consumption	KW	35	45	84
Extruder unit
Screw diameter	mm	80	90	100
Plasticising capacity	kg/hr	100	120	140
Screw heating power	KW	20	20	26
Extruder driving power	KW	30	37	45
Die-head
Die head heating power	KW	10	12	25
Accurroujator capacity	L	4.4	6.6	12.8
