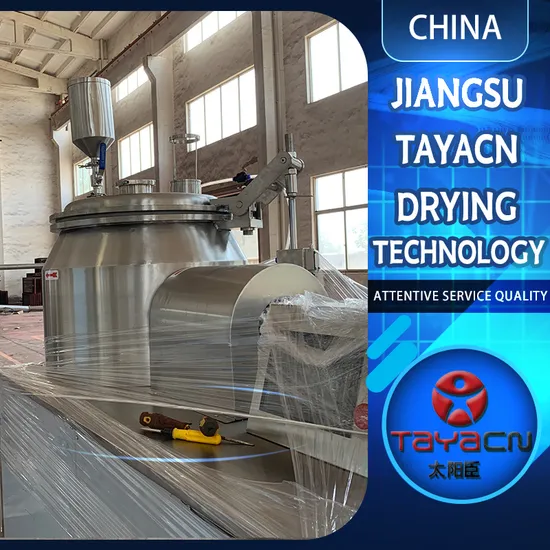

Automatic Machine Boiling Granulator for Chemical Industry

Product Description

model	A	B	C×D	E	F
50	320	950	1250×800	970	1650
150	420	1,000	1350×800	1050	1750
200	500	1100	1650×940	1450	2050
250	500	1160	1650×940	1400	2260
300	550	1200	1700×1000	1400	2310
400	670	1300	1860×1100	1550	2410
600	750	1500	2000×1230	1750	2610

Working Principle
Powder material and adhesive are fully mixed into a moist soft material in the cylindrical container from the bottom mixing slurry, and then cut into uniform wet particles by high-speed pulverizing paddles placed on the side.
Performance characteristics
1 This machine adopts horizontal cylinder structure, reasonable structure.
2 Inflatable sealed drive shaft, switchable to water when cleaning.
3 fluidized granulation, granulation approximate spherical, good fluidity.
4 25% less adhesive than traditional process, shorter drying time.
5 Only dry mix 2 minutes for each batch, granulation 1-4 minutes, 4-5 times more efficient than traditional process.
6 Complete in the same closed container, dry mix-wet mix-granulation, process shortening.
7 The entire operation has strict safety protection measures.
8 can be made according to user requirements jacket type.
