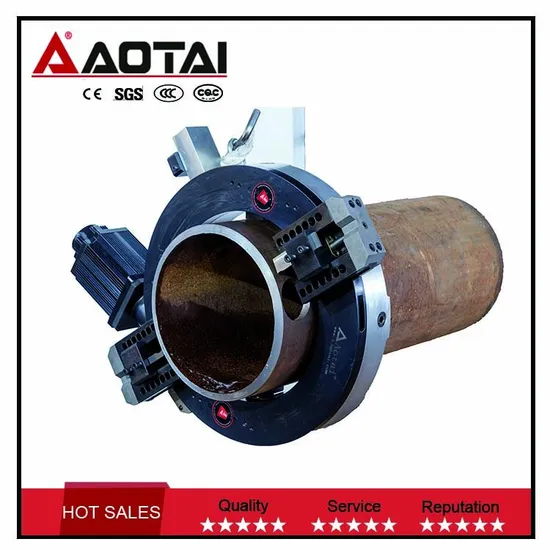

Pneumatic Split Frame Machines

Product Description

Product Application 1. petroleum, chemical, natural gas, power supply construction, boiler and nuclear power.
2. Pipeline construction site, beveling process for the all sizes of pipes and pressure vessels and steam generator.
3. Can process material:carbon steel, alloy steel, stainless steel, non-ferrous metal, engineering plastic and cast steel.
Machine Body and Material
Standard Model: Alloy steel with ionic nitriding treatment. The weight is a bit heavy, but sturdy and durable.
Light Model: Aerospace grade aluminum alloy or Hollowout Alloy Steel. Light weight and suitable for high-altitude operation. Main Features 1) Auto feed, cutting and beveling the pipe at the same time, cost effective.
2) Cold cutting, don't influence the pipe's material.
3) Out-mounted, clamping by multi-point jaws.
4) Split frame technology, easy to install in pipeline.
Customer Photo
Standard

Model	Capacity range		Wall thickness(mm)		Rotating speed(rpm)
	OD(mm)	OD(inch)	Single operation	Multi operation
90	10-90	3/8"-3"	≤25		34
168	25-168	1"-6"	≤25	≤50	24
219	50-219	2"-8"	≤25	≤50	23
273	114-273	4"-10"	≤25	≤75	23
323	168-323	6"-12"	≤25	≤75	23
355	177-355	8"-14"	≤25	≤110	23
406	254-406	10"-16"	≤25	≤110	22
457	323-457	12"-18"	≤25	≤110	20
508	355-508	14"-20"	≤25	≤110	20
559	406-559	16"-22"	≤25	≤110	14
610	457-610	18"-24"	≤25	≤110	14
762	610-762	24"-30"	≤25	≤110	13
914	762-914	30"-36"	≤25	≤110	11
1066	914-1066	36"-42"	≤25	≤110	10
1160	980-1160	38"-44"	≤25	≤110	9
1240	1040-1240	40"-48"	≤25	≤110	9
1300	1150-1300	45"-51"	≤25	≤110	8
1540	1320-1540	52"-60"	≤25	≤110	5
1700	1500-1700	59"-67"	≤25	≤110	4
1910	1700-1910	67"-75"	≤25	≤110	4
2100	1905-2100	75"-83"	≤25	≤110	3
2310	2100-2300	83"-91"	≤25	≤110	2

Detailed Image
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.
Q: What is your terms of payment ? A: 1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;
2) If all the cost is less than USD $ 10000, T/T 100% required in advance.
Company Info
Aotai Machine manufacturing Co., Ltd is specialized in the research, develop and manufacturing of welding equipments and welding technology supports. It is a high tech enterprise engaged in scientific research, develop, product manufacturing and trade .In the past years, we have imported advanced equipment and technology such as Japanese Zimarac digital controlled tooling machine multiple processing center, digital controlled tooth moving machine and tooth rolling machine. We have continuously updated our products and technology and our company have passed ISO9001 quality certification. And we are member of grade one supplier network for China Petroleum & Natural Gas Group Company
Aotai company has supplied superior quality equipments and technical services to China nucleus, aerospace, petroleum, chemical, power supply construction and boiler industry. And our exported products are widely used in the large scale piping projects in Kuwait, Sudan, Pakistan and etc. and are well accepted and supported by our foreign clients.
We take credit and sincerity as the base of our development and we will utilize our advanced technology to service all our clients.
Essen Fair
Certifications
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase).
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed.
