Precision Concrete Laser Leveling Screed for Flawless Finishes

Product Description

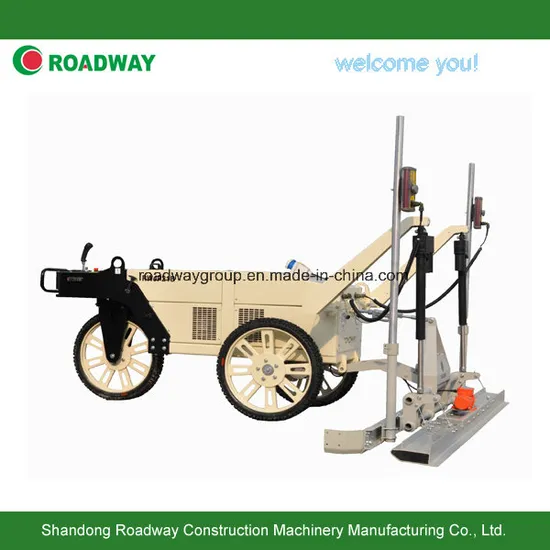

Concrete walk behind Laser screed

The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

1. Screed assembly is hydraulic controlled. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.
2. The Laser transmitter which measures the elevation is independent located, so there is no worry about the accumulative error. Compared with the traditional way, the construction joints will be greatly reduced, so the maintenance cost and slab use will be down greatly. For the complex floor which has high requirement for drainage, the 3-D floor processing system can be used.

Model	RWJP21B
Engine
Model	HONDA generator set
Power	2.0kW
Fuel tank L	14.5L
Running device
Drive	Electrical Motor
Running type	Electric control, stepless speed
Wheel	3 wheels, solid puncture-proof tyre
Running speed	0-36m/min
Suggest working speed	5m/min(adjustable)
Screed head
Type	Electric control, self-leveling
Width	2500mm
Exciting force	500N
Vibration frequency	50Hz
Laser control system
Control type	Microcomputer control
Size and weight
Working size	2860×2622×1980mm
Weight	395kg

Model	RWJP22B
Engine
Model	HONDA GX390 Electric start
ZType	Gasoline engine, air cooled, 4 stroke, OHV, Single cylinder
Power	13hp/3600rpm
Lubricant L	1.12L
Fuel oil volume	6.5L
Fuel consumption	313g/kWh
Running device
Drive	Hydraulic motor and motor
Running type	Handle control, stepless speed
Wheel	3 wheels, Solid puncture-proof tyre
Running speed	0-45m/min
Suggest working speed	5m/min
Screed head
Type	Electric control, self-leveling
Width	2500mm
Exciting force	500N
Vibration frequency	50Hz
Laser control system
Control type	Microcomputer laser scan
Steering	Hydraulic control
Hydraulic oil volume	30L
Size and weight
Working size	2900×2520×1360mm
Weight	365kg

Model	RWJP23B
Engine
Model	HONDA GX390 Electric start
ZType	Gasoline engine, air cooled, 4 stroke, OHV, Single cylinder
Power	13hp/3600rpm
Lubricant L	1.12L
Fuel oil volume	6.5L
Fuel consumption	313g/kWh
Running device
Drive	Hydraulic motor and motor
Running type	Handle control, stepless speed
Wheel	3 wheels, solid puncture-proof tyre
Running speed	0-45m/min
Suggest working speed	5m/min
Screed head
Type	Hydraulic control, self-leveling
Width	2500mm
Exciting force	500N
Vibration frequency	50Hz
Laser control system
Control type	Microcomputer control
Steering	Hydraulic control
Hydraulic oil volume	30L
Size and weight
Working size	2780×2622×1980mm
Weight	410kg
